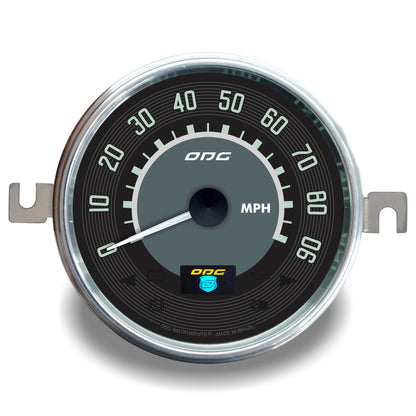

Beetle Instrument Cluster

This high-performance automotive instrument is designed to provide a complete and customized experience for your vehicle. For detailed information on pricing and purchasing conditions, please contact us directly. Our team is ready to assist you with all the details you need.

Download the manual in PDF (Milhas)

Basic Instrument Cluster for Volkswagen Beetle

This instrument cluster is designed to replace the original dashboard of the Volkswagen Beetle. It includes a fully electronic speedometer, fuel level indicator, left-grade panel with a 52mm hole, and a speed sensor with an M18x1.5 internal/external thread.

Installation is straightforward—simply remove the original instruments, place the new unit in position, and make the necessary electrical connections.

The entire cluster is 100% configurable and features translucent backlighting with full-color options (7 selectable colors).

Key Features:

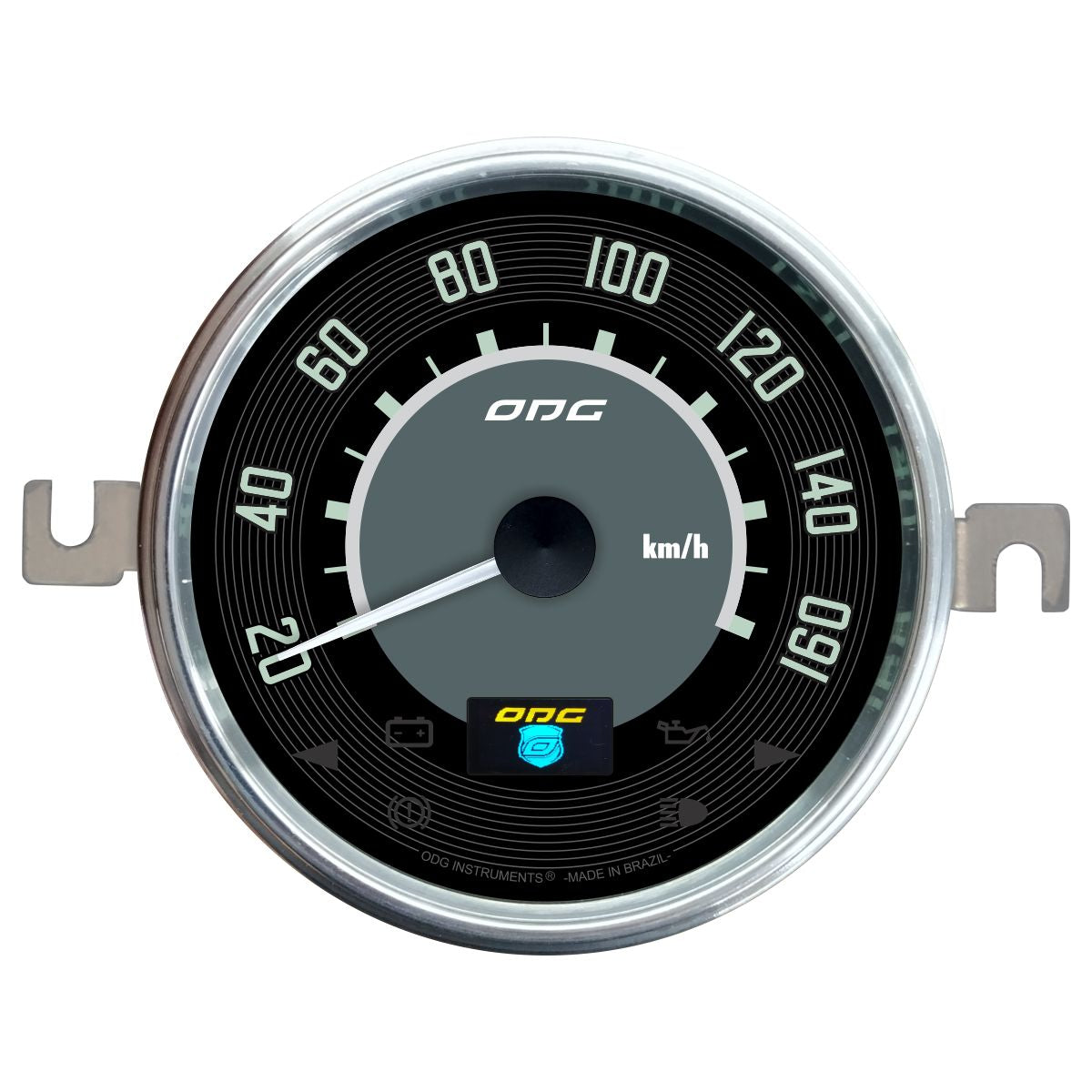

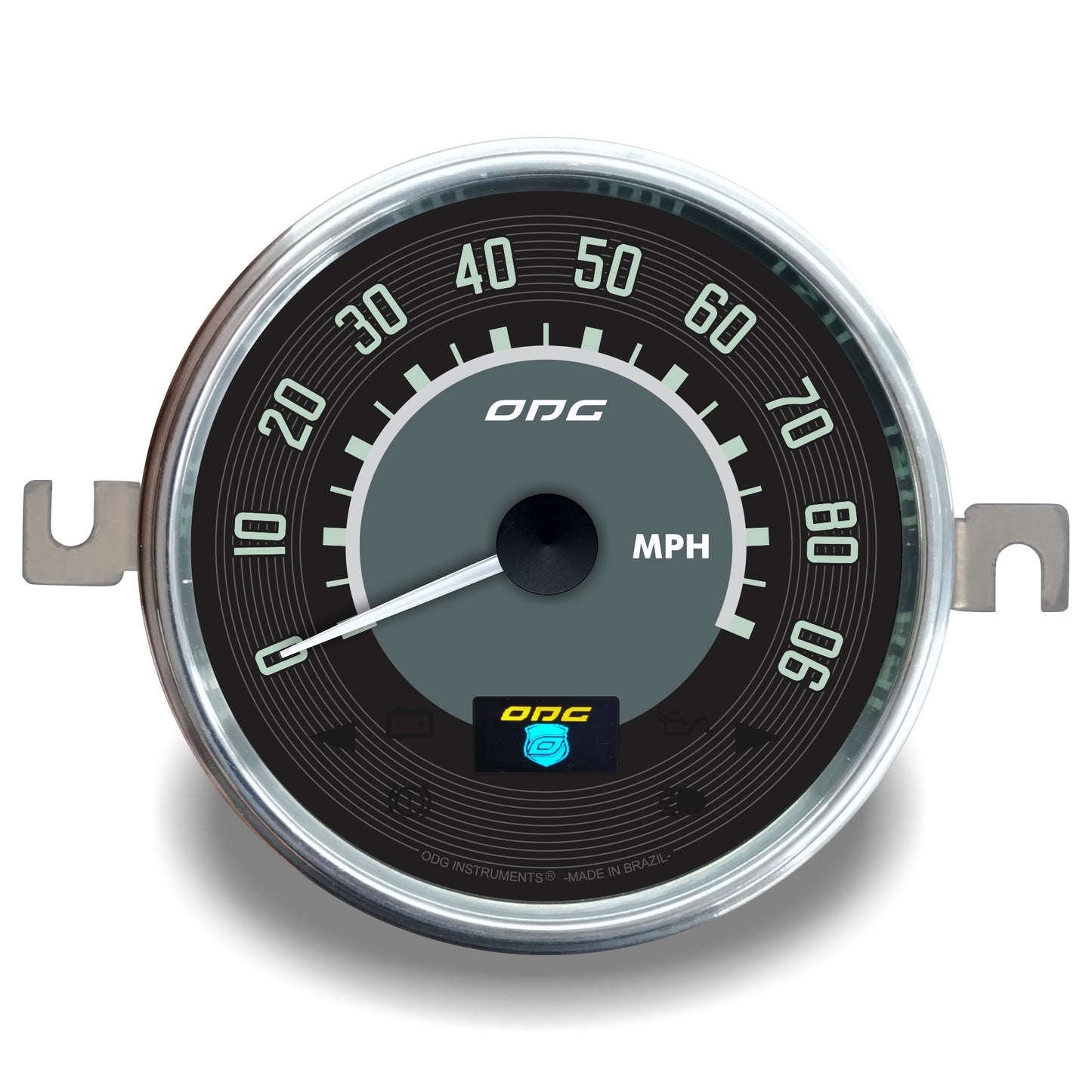

Electronic Speedometer:

• Designed for 114mm standard hole mounting and fully configurable.
• Total Odometer can be set to any starting mileage, preserving the original mileage of the vehicle.
• Trip Odometer can be reset at any time via the included keypad.
• The display also includes an extra configuration that can show fuel level and temperature.
• Fully configurable to work with any transmission ratio and tire size—just install the included speed sensor.

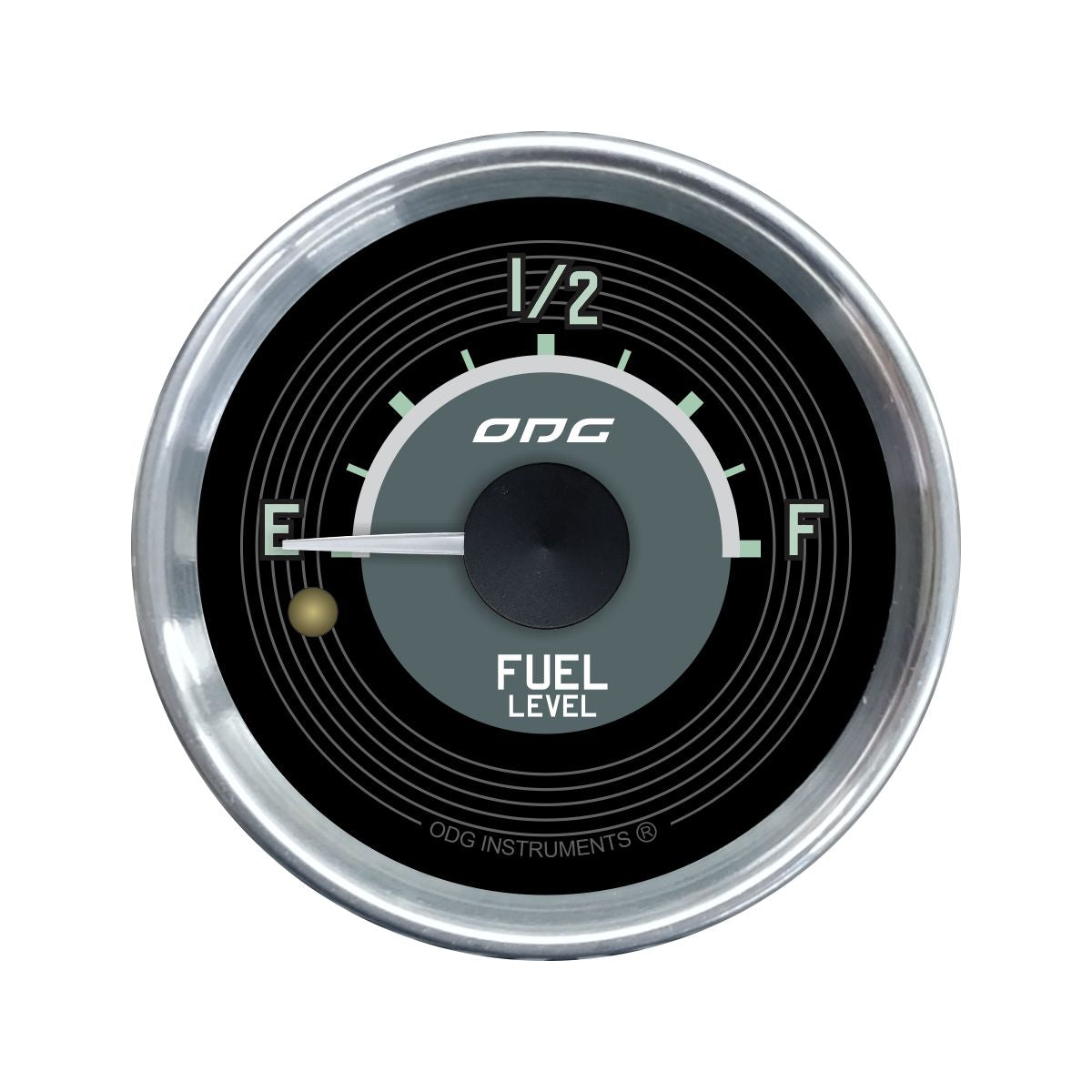

Fuel Level Indicator:

• Features a LED reserve light and is configurable to work with any type of float or standard market floats, provided the float’s resistance is below 1000 Ohms.
• Does not include the float; however, it can be calibrated for any tank and float configuration.

Speed Sensor:

• Sensor Included: M18x1.5 internal/external thread, model 5103, which is compatible with most Beetle gearboxes.

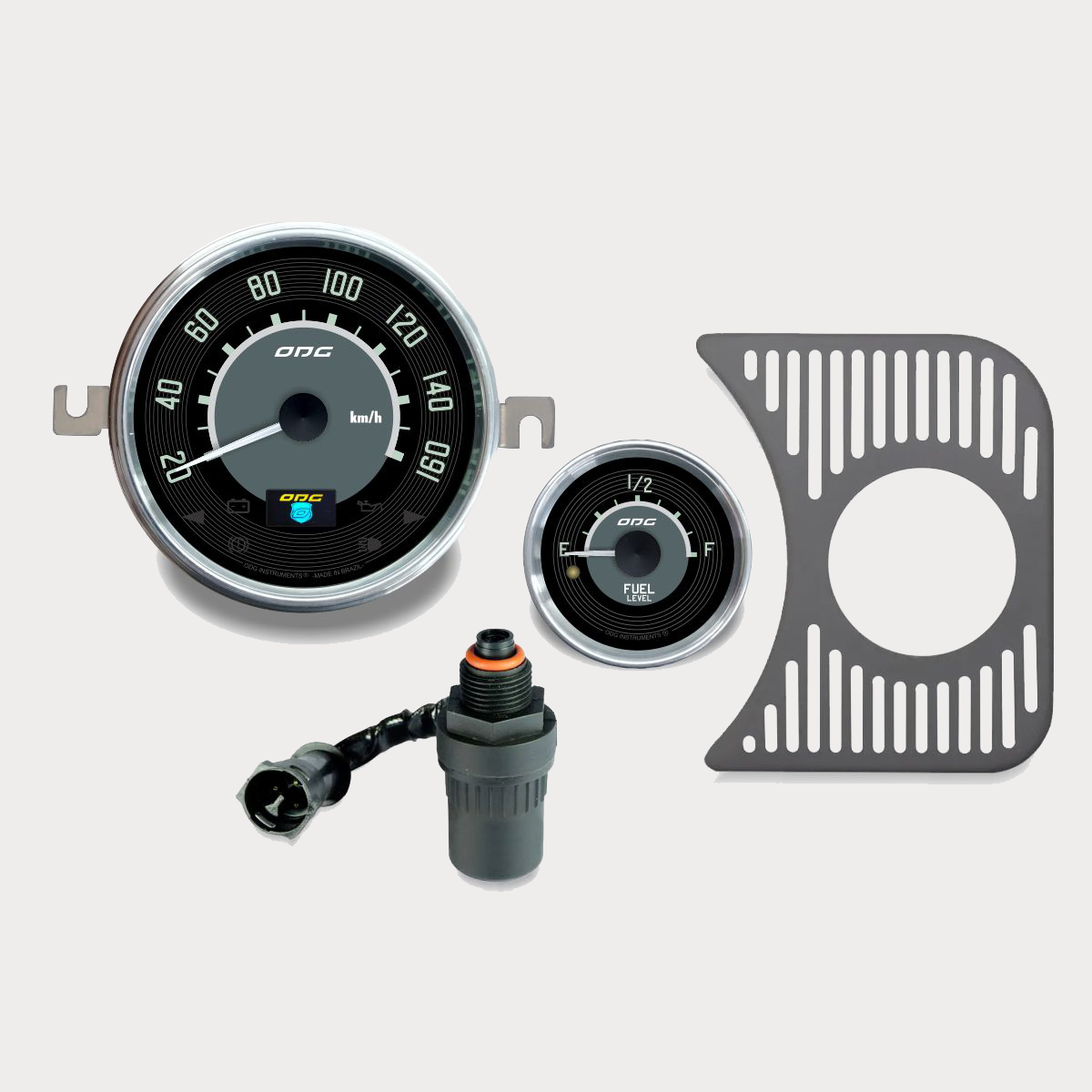

Included Items:

• Electronic Speedometer for 114mm hole, fully configurable
• Fuel Level Indicator for 52mm hole, configurable for any tank and float type
• Speed Sensor with M18x1.5 thread (model 5103)
• Left Grade Panel with 52mm hole
• Configuration Keypad for easy setup and operation
• Installation Manual for quick and easy setup

Technical Specifications:

• Speedometer: 114mm hole, fully configurable to work with any transmission and tire size.
• Fuel Level Indicator: 52mm hole, configurable for any float and tank.
• Backlighting: Full-color translucent lighting with 7 selectable colors.
• Operating Voltage: 12V DC.
• Sensor: Speed sensor with M18x1.5 internal/external thread (included).
• Maximum Resistance for Float: 1000 Ohms.

Warranty:

• 12-month warranty against manufacturing defects.
