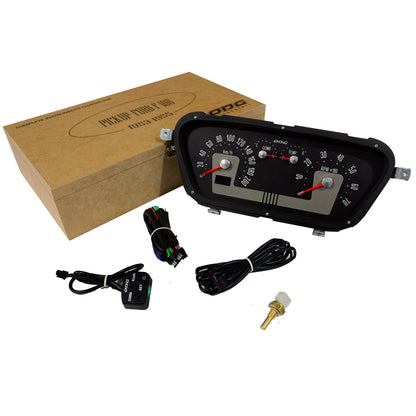

Cluster Ford F100 - 1953-55

Cluster Ford F100 - 1953-55

This high-performance automotive instrument is designed to provide a complete and customized experience for your vehicle. For detailed information on pricing and purchasing conditions, please contact us directly. Our team is ready to assist you with all the details you need.

Download the manual in PDF (Milhas)

Download the manual in PDF (Quilômetros)

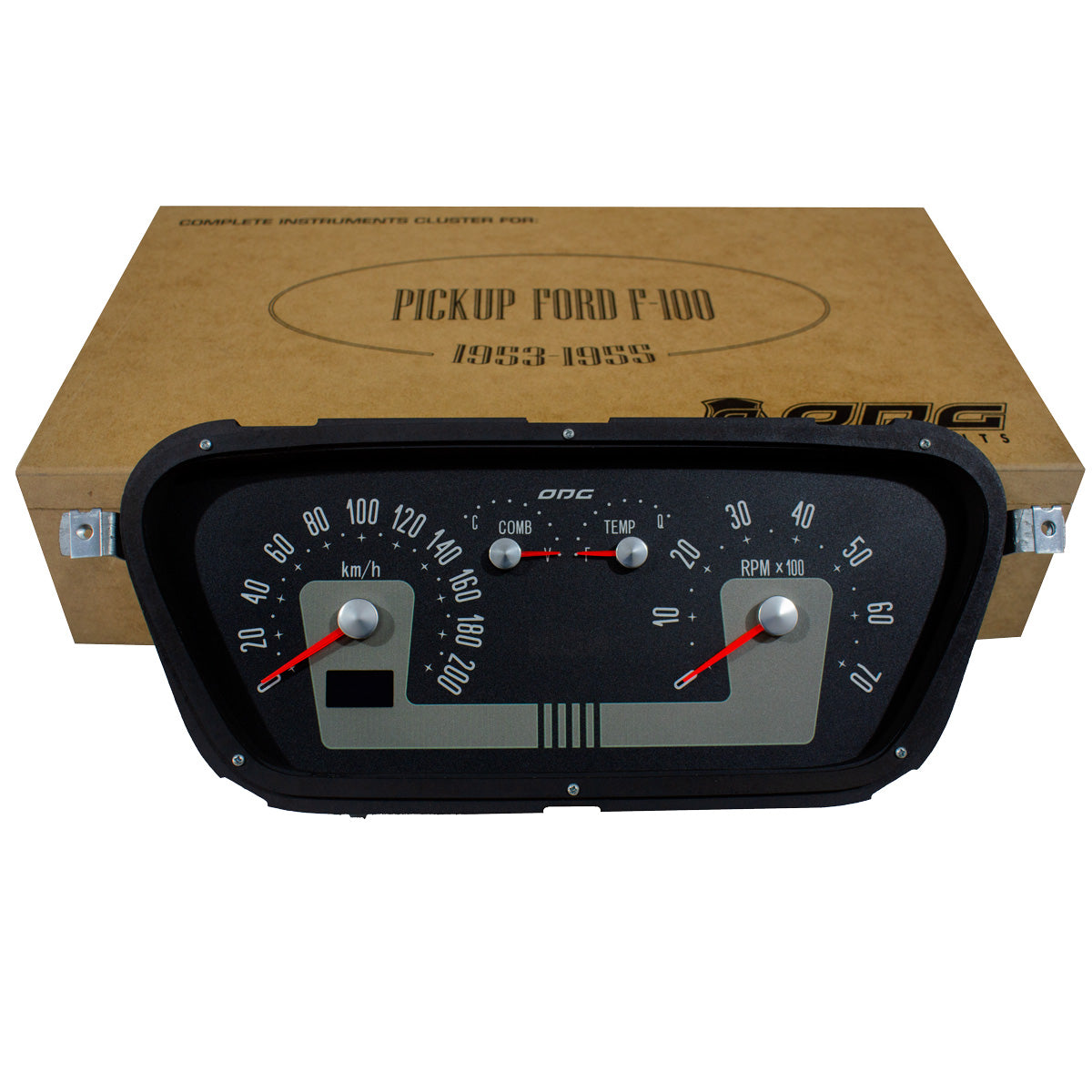

Instrument Panel for Ford Pickups Inspired by the 1953 to 1955 American F100 Dashboard or Compatible Models

This panel replaces the original instrument panel.

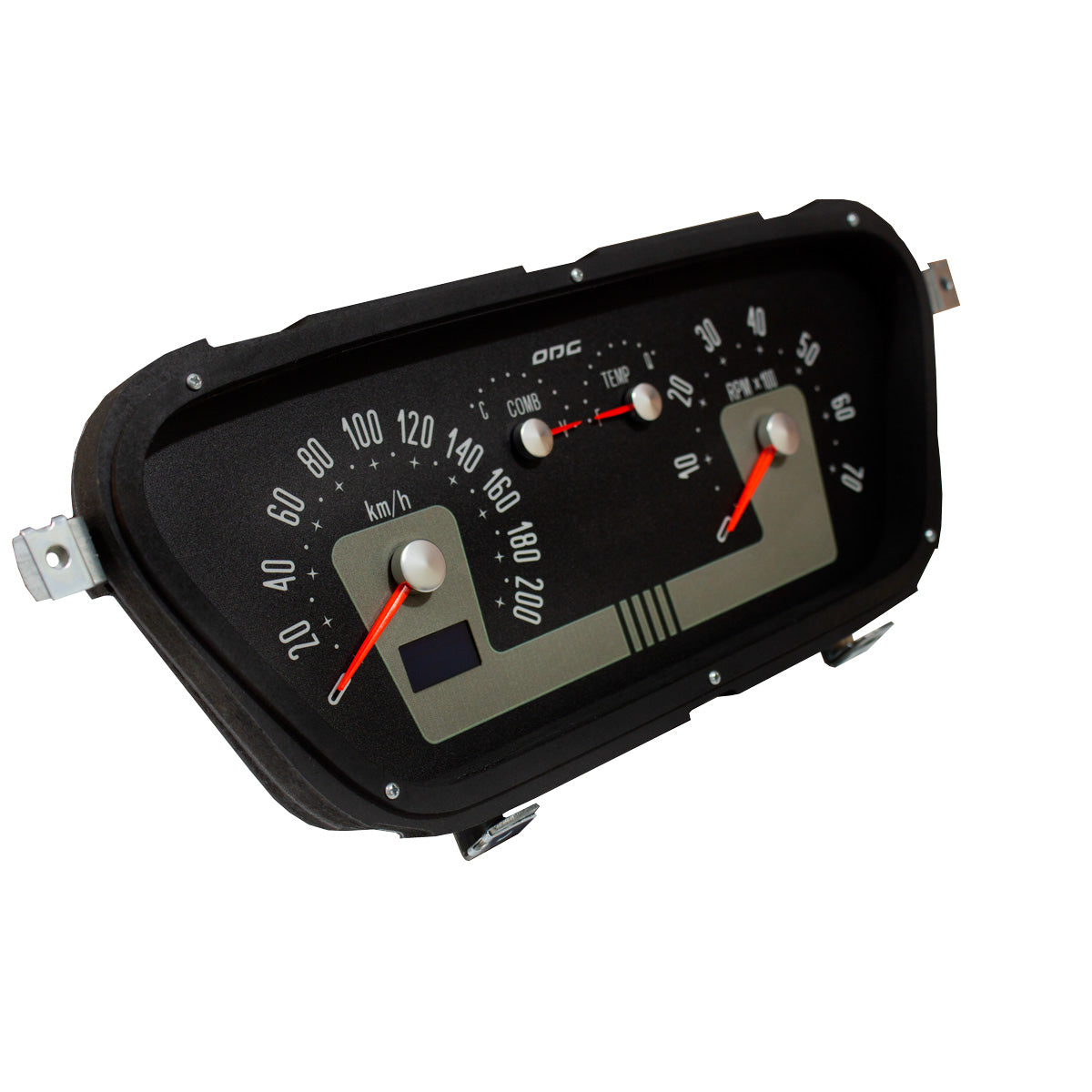

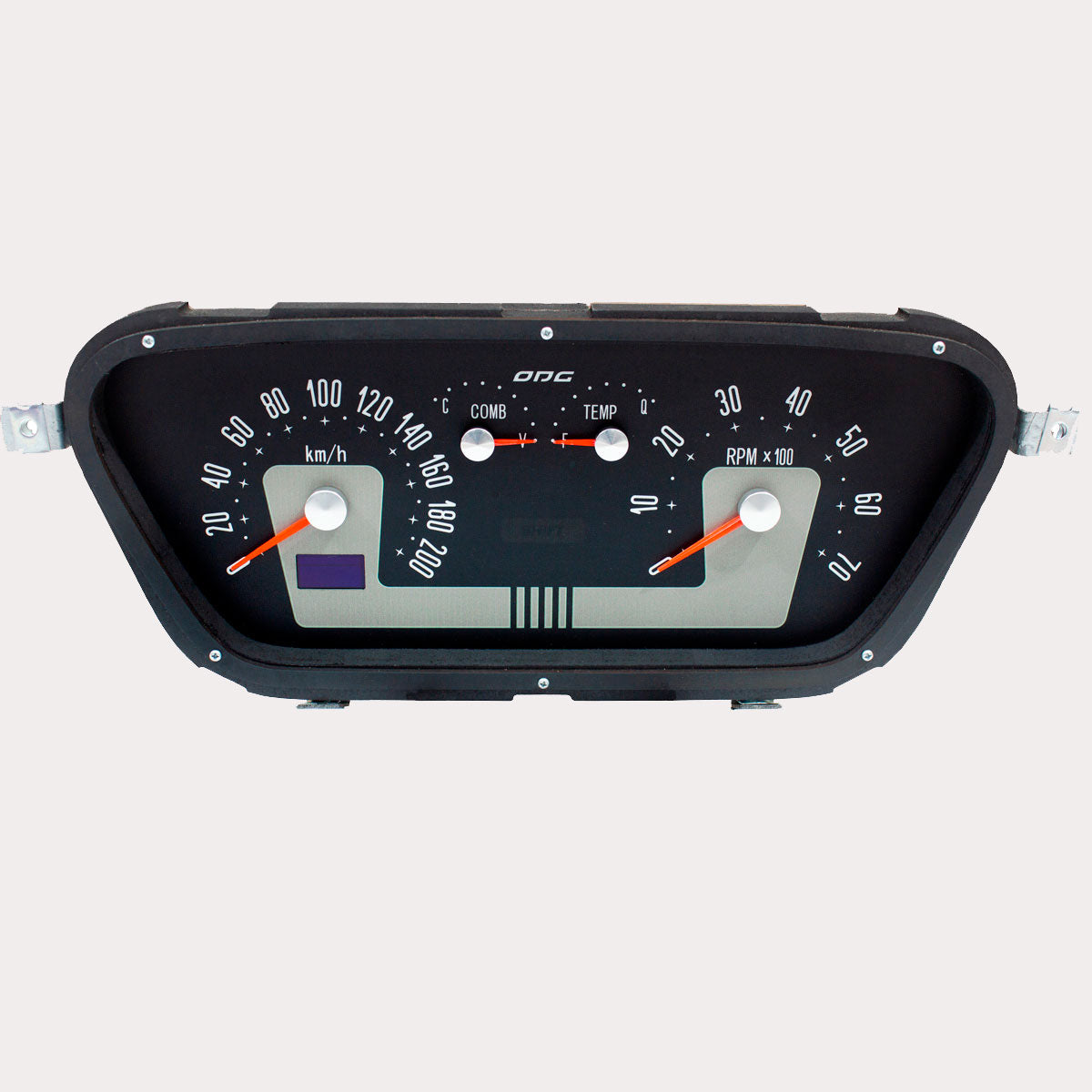

It features a speedometer with total and trip odometers, a tachometer, a fuel level indicator, an engine temperature gauge, and six warning lights.

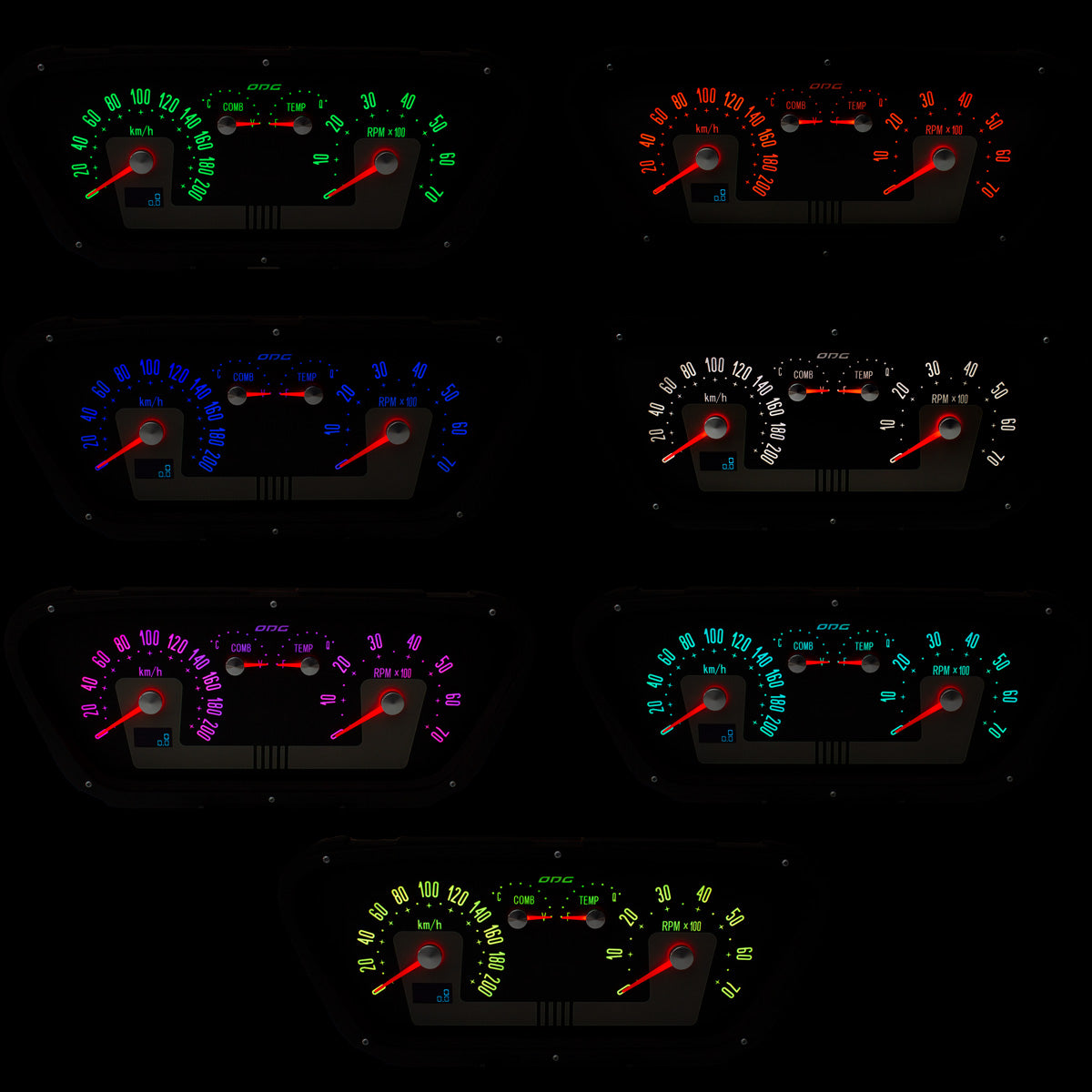

Its translucent lighting has 7 selectable colors and includes a DIMMER function for brightness control. The needles have red illumination.

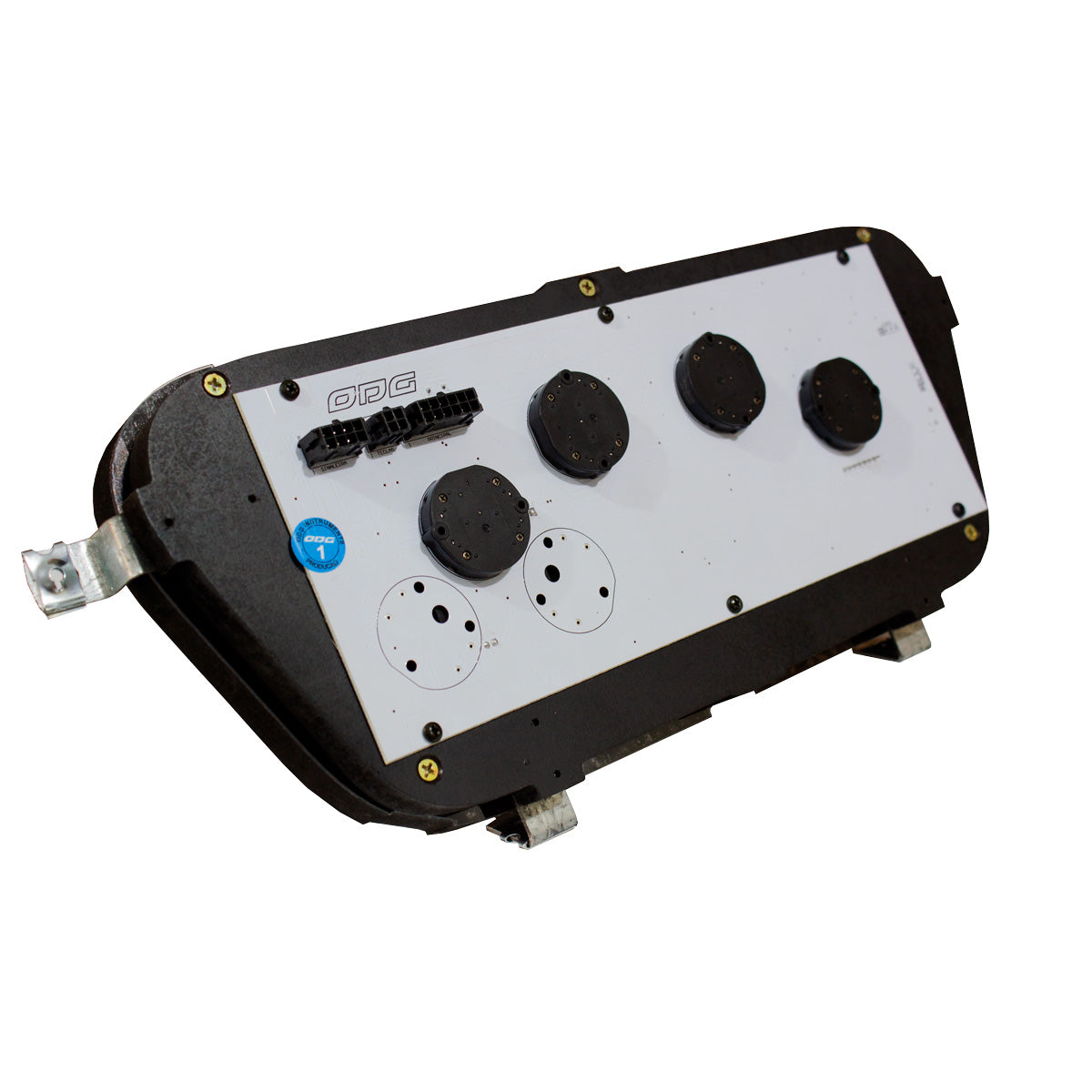

Installation is simple; the old panel must be removed from the original frame (the frame is not included), which will then hold the new panel.

FEATURES IN DETAIL:

SPEEDOMETER

  • Fully configurable, it can work with any transmission ratio and tire outer diameter; just install a speed sensor (not included).
  • Accepts square wave signals (typically generated by hall-effect sensors) or sine wave signals (*).
  • Offers various methods for speed calibration, including a very easy 60 km/h method.
  • The total odometer can be set to an initial KM value, useful for maintaining the vehicle's original mileage.
  • The trip odometer can be reset at any time using the keypad.

Once configured, speed indication is accurate.

TACHOMETER

  • Works with Otto cycle engines (4, 6, and 8 cylinders) or Diesel cycle engines (*). Not recommended for points ignition systems.
  • For DIESEL engines, the RPM signal must be obtained from the W terminal of the alternator.

ENGINE TEMPERATURE INDICATOR

  • Electronic, works with a modern temperature sensor (model MTE4054 / ODG 052.0.0.0.3), featuring two wires for excellent performance.

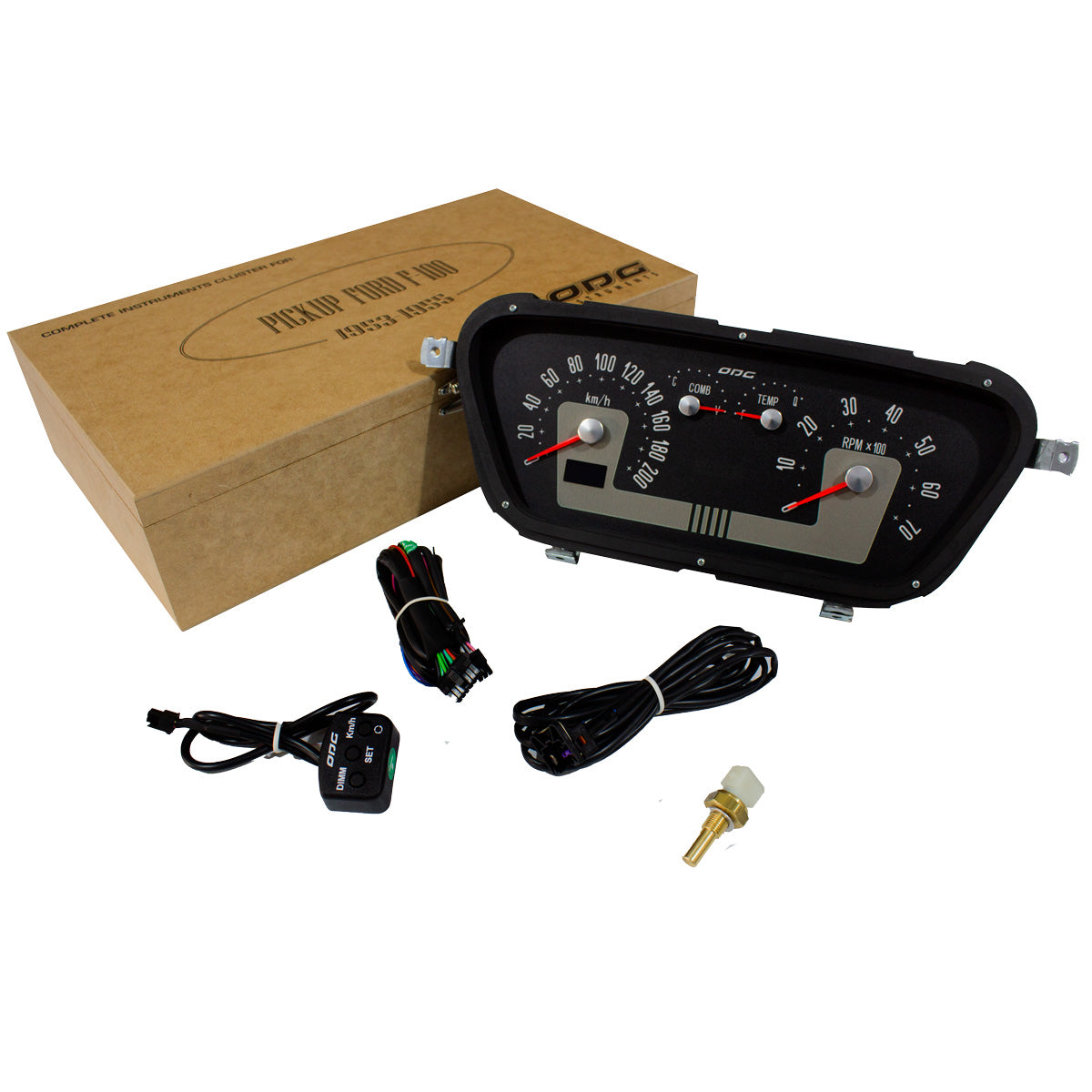

  • The temperature sensor and its harness are included with the panel.

FUEL LEVEL INDICATOR

  • Programmable for any float and tank combination. Programming is easy and can be done in two ways: by entering resistance values for empty, half, and full tank, or by filling the tank with fuel.

WARNING LIGHTS

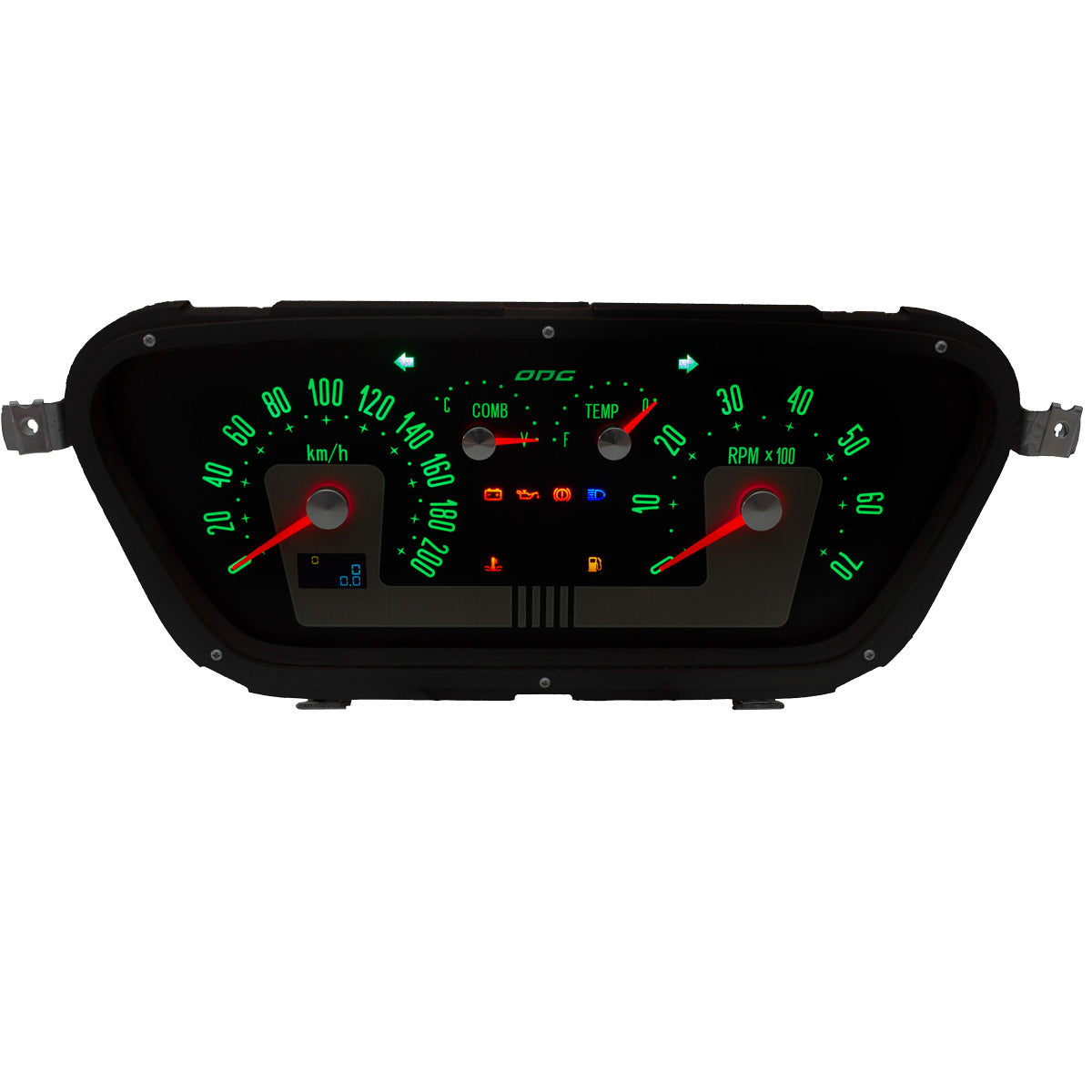

  • Features 6 indicators covering the vehicle’s most important signals (Alternator, oil pressure, brake, left turn signal, right turn signal, and high beam).

Technical Specifications:

  • Operating voltage: 12 VDC
  • Speed range: 0 to 200 km/h
  • RPM range: 0 to 7,000 RPM
  • Engine temperature range: 40 to 120 degrees Celsius
  • Fuel level indicator with 1 pre-programmed float and adjustable float option
  • Programmable for any transmission ratio (requires sensor)
  • Warning lights with 6 indicators
  • Easy parameter configuration through the display and accompanying keypad

Requirements:

  • For the speedometer: a three-wire speed sensor or a two-wire inductive sensor + CSI (*).
  • For the fuel level indicator: a level sensor/float with a maximum resistance of 1K Ohms.

(*) IMPORTANT: Reading sine wave signals generated by inductive sensors (two wires) or taken from the alternator must be 'conditioned' through inductive signal conditioning modules CSI-1 (ODG#1470000), which must be purchased separately.

It should be noted that the minimum amplitude of these signals must be one volt peak-to-peak (1Vpp).

12-month warranty against manufacturing defects.
