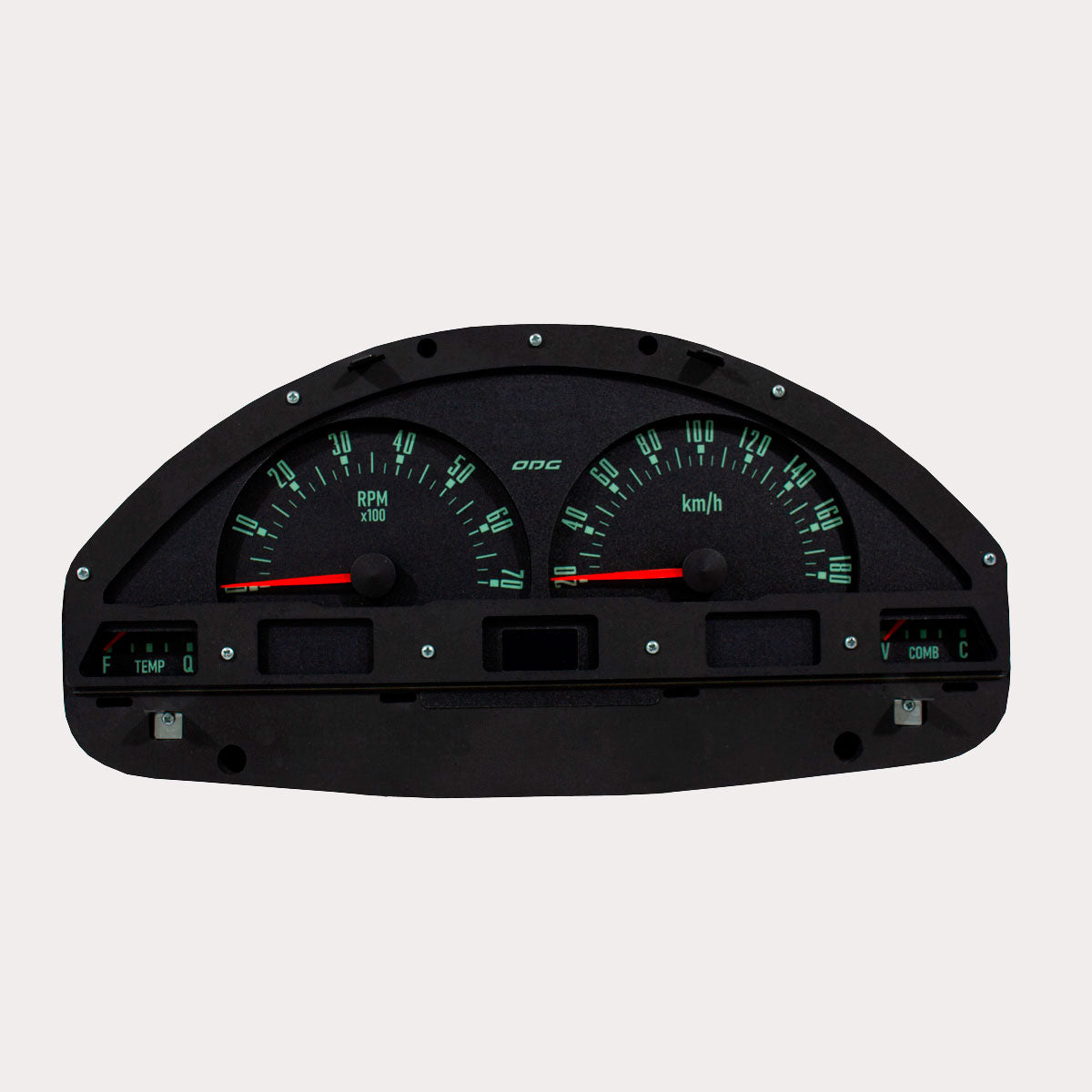

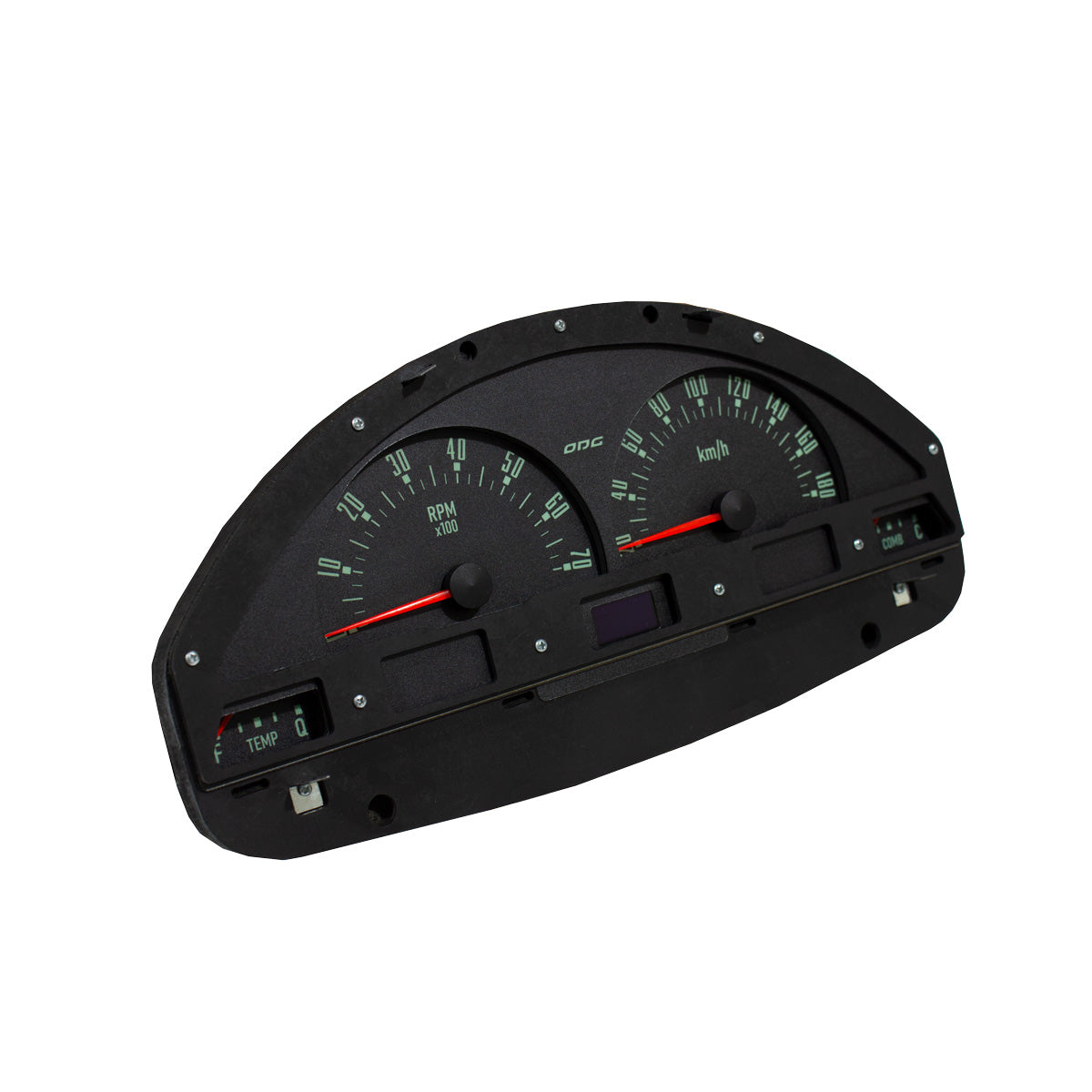

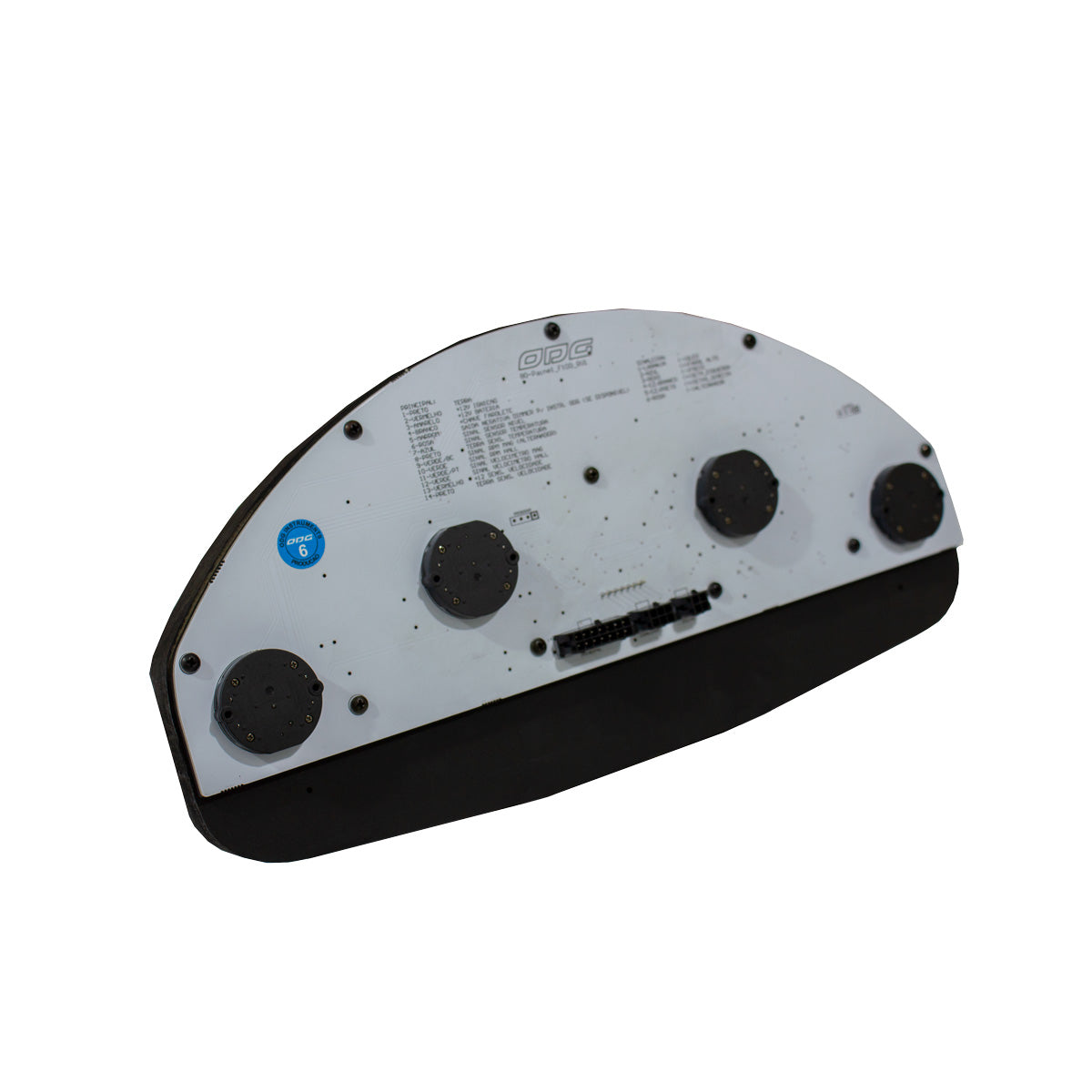

Instrument Cluster for 1956 Ford F100 Pickup

This instrument cluster is designed to replace the original dashboard.

It features a speedometer with total and trip odometers, tachometer, fuel level indicator, engine temperature gauge, and six warning lights.

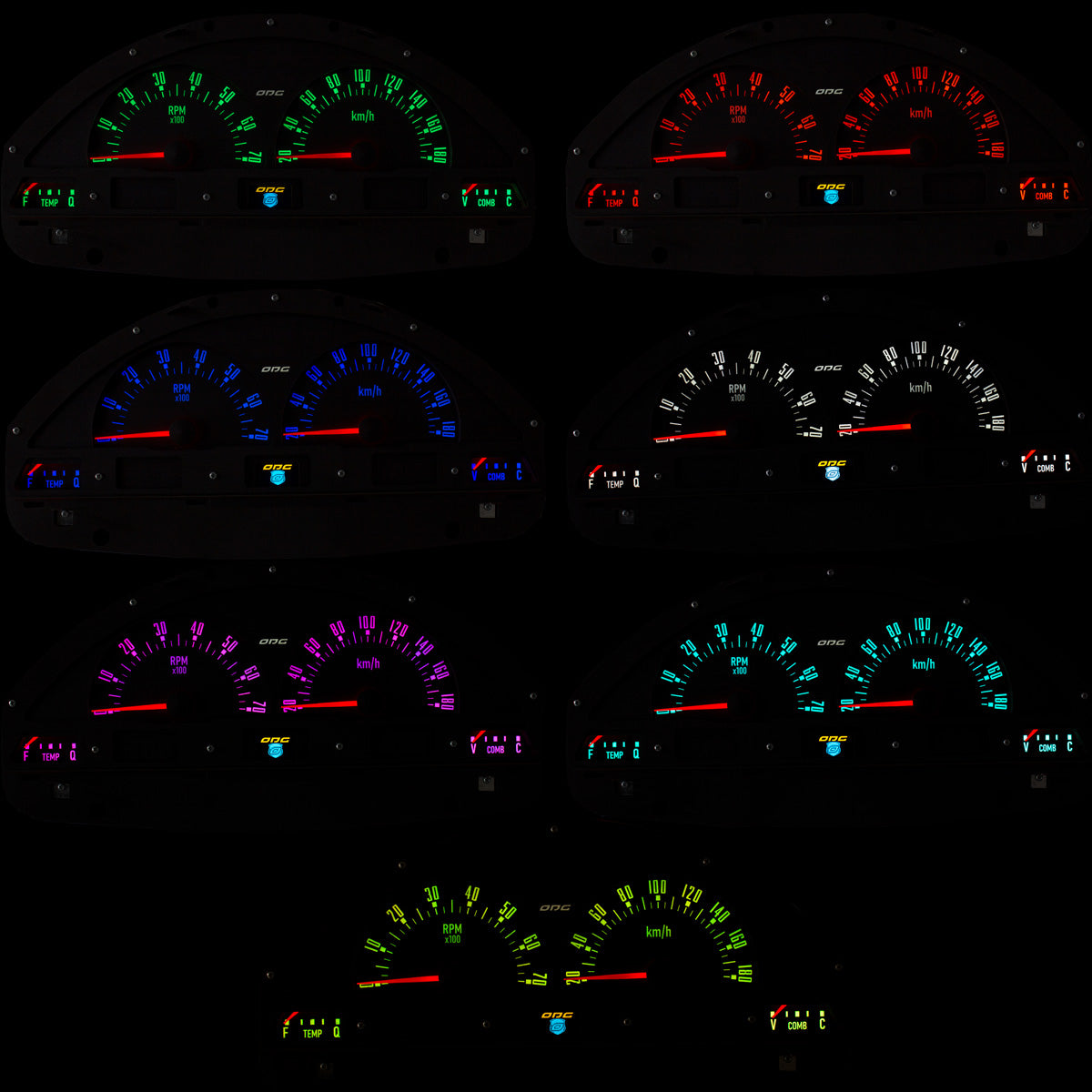

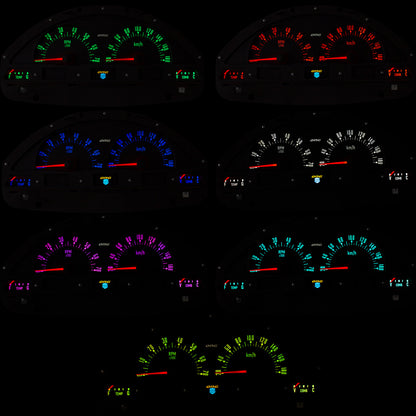

The translucent backlighting offers seven selectable colors and includes a DIMMER function to adjust brightness. The needles are illuminated in red.

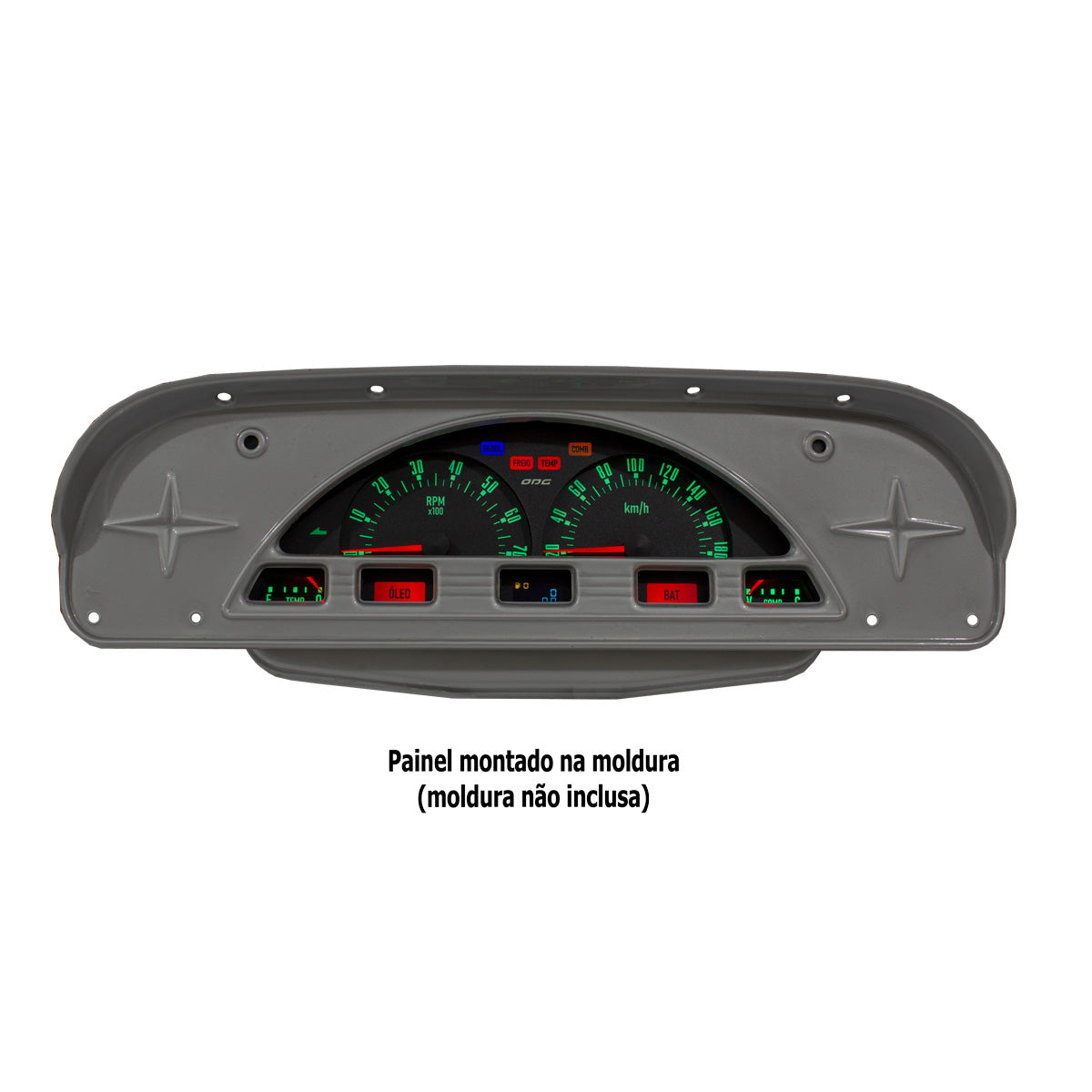

Installation is straightforward: simply remove the old dashboard from the original frame (frame not included), and insert the new panel.

Key Features:

SPEEDOMETER

  • Fully configurable to work with any transmission ratio and tire diameter. Simply install a speed sensor (not included).
  • Accepts both inductive sensor signals with a minimum 1 Vpp peak-to-peak voltage and square wave signals.
  • Multiple calibration methods are available, including an easy-to-use method for 60 km/h.
  • The total odometer can be set to any initial value, making it easy to retain the vehicle's original mileage.
  • The trip odometer can be reset at any time using the included keypad.

Once configured, the speed indication is accurate and reliable.

TACHOMETER

  • Works with Otto cycle engines (4, 6, and 8 cylinders) or diesel cycle engines. Not recommended for vehicles with a points-based ignition system.
  • For diesel engines, the tachometer signal is obtained from the alternator's W terminal.

ENGINE TEMPERATURE INDICATOR

  • Electronic gauge that works with a modern two-wire temperature sensor (model MTE4054 / ODG 052.0.0.0.3), ensuring precise readings.

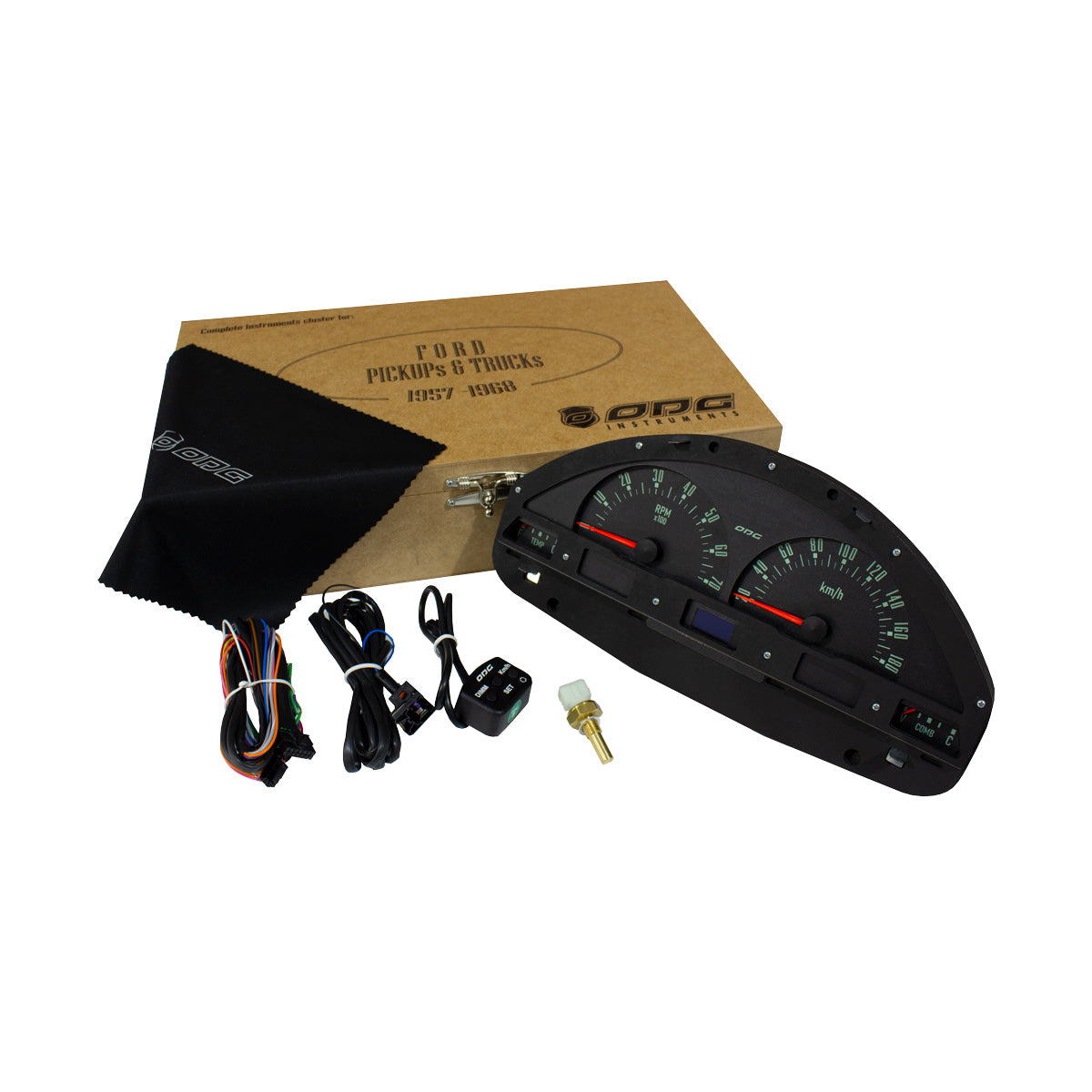

  • The temperature sensor and wiring harness are included with the panel.

FUEL LEVEL INDICATOR

  • Programmable for any float and tank configuration. The programming process is easy and can be done in two ways: either by entering the resistance values for empty, half-full, and full tank levels, or by filling the tank and calibrating the float sensor accordingly.

WARNING LIGHTS

  • Includes six indicators covering the most important vehicle signals: alternator, oil pressure, brake, left turn signal, right turn signal, and high beam.



Technical Specifications:

  • Operating Voltage: 12 VDC
  • Speed Range: 0 to 180 km/h
  • RPM Range: 0 to 7,000 RPM
  • Engine Temperature Range: 40°C to 120°C
  • Fuel Level Indicator: Includes one pre-programmed float and an adjustable float option
  • Programmable for Any Transmission Ratio (requires sensor)
  • Warning Lights: Six indicators
  • Easy Configuration: Set parameters via the display and keypad included



Requirements:

  • Speedometer: Requires a 2 or 3-wire speed sensor.
  • Fuel Level Indicator: Requires a float/sensor with a maximum resistance of 1K Ohms.

Warranty: 12 months against manufacturing defects.
