Cluster Chevy / GMC - 1947-55

Cluster Chevy / GMC - 1947-55

This high-performance automotive instrument is designed to provide a complete and customized experience for your vehicle. For detailed information on pricing and purchasing conditions, please contact us directly. Our team is ready to assist you with all the details you need.

Download the manual in PDF (Milhas)

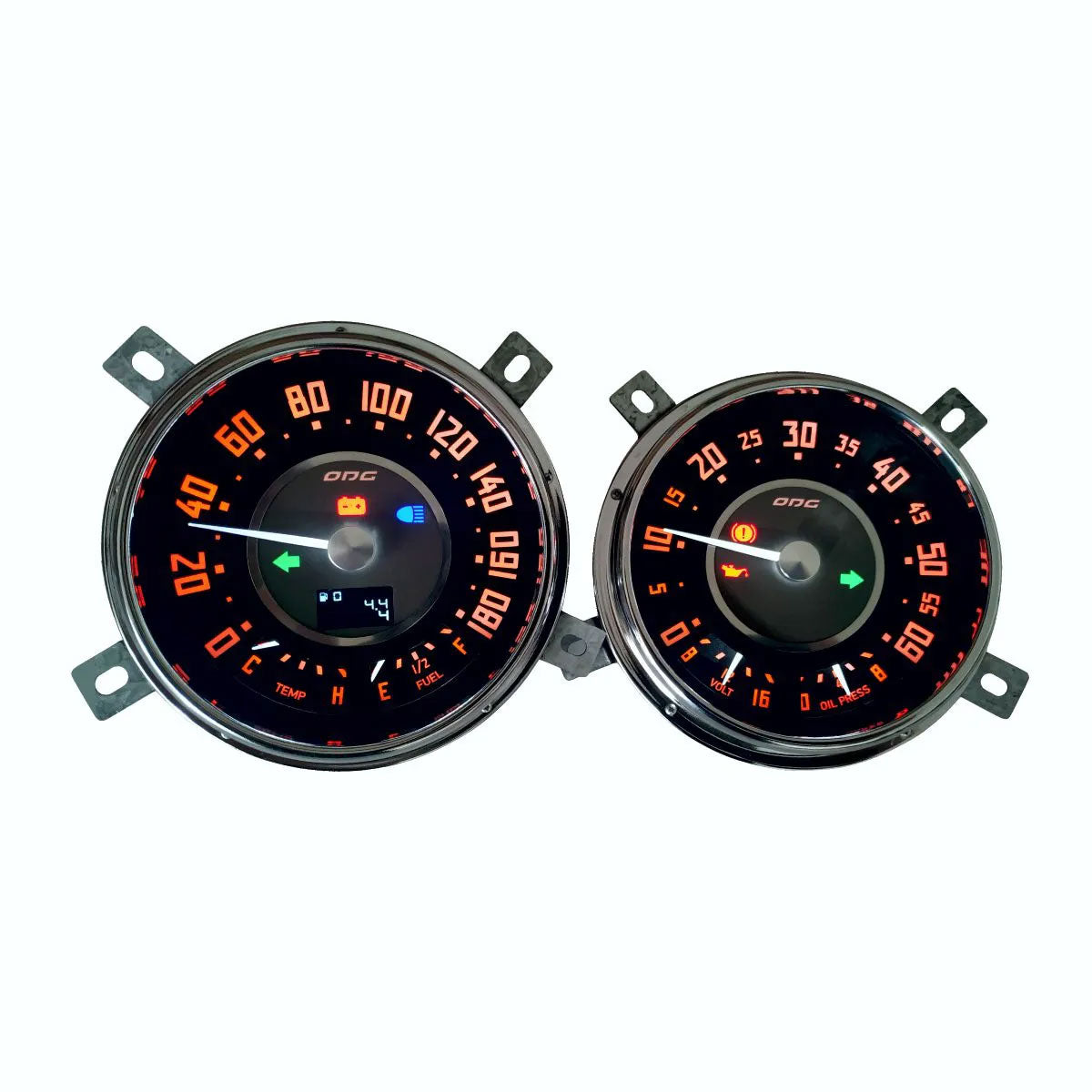

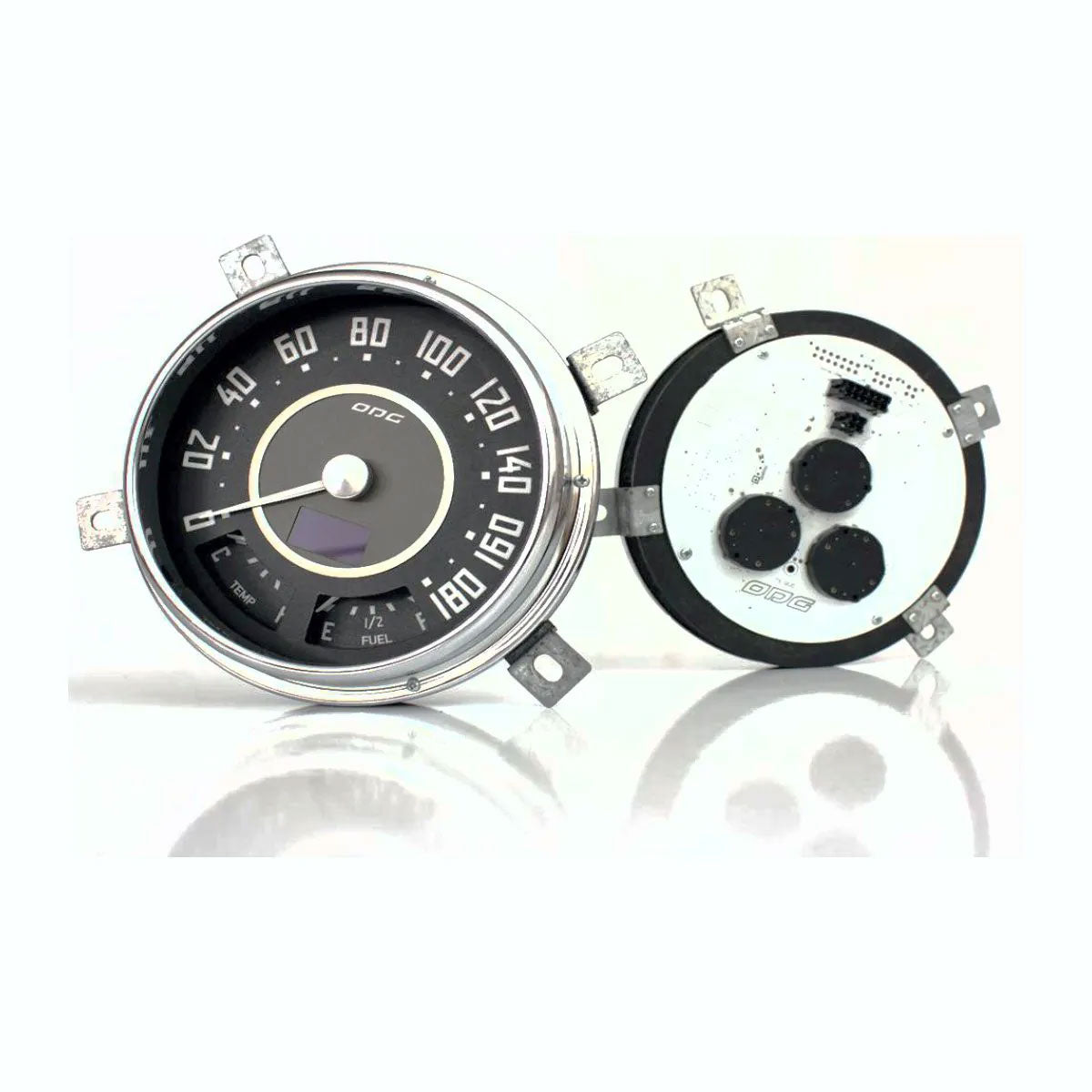

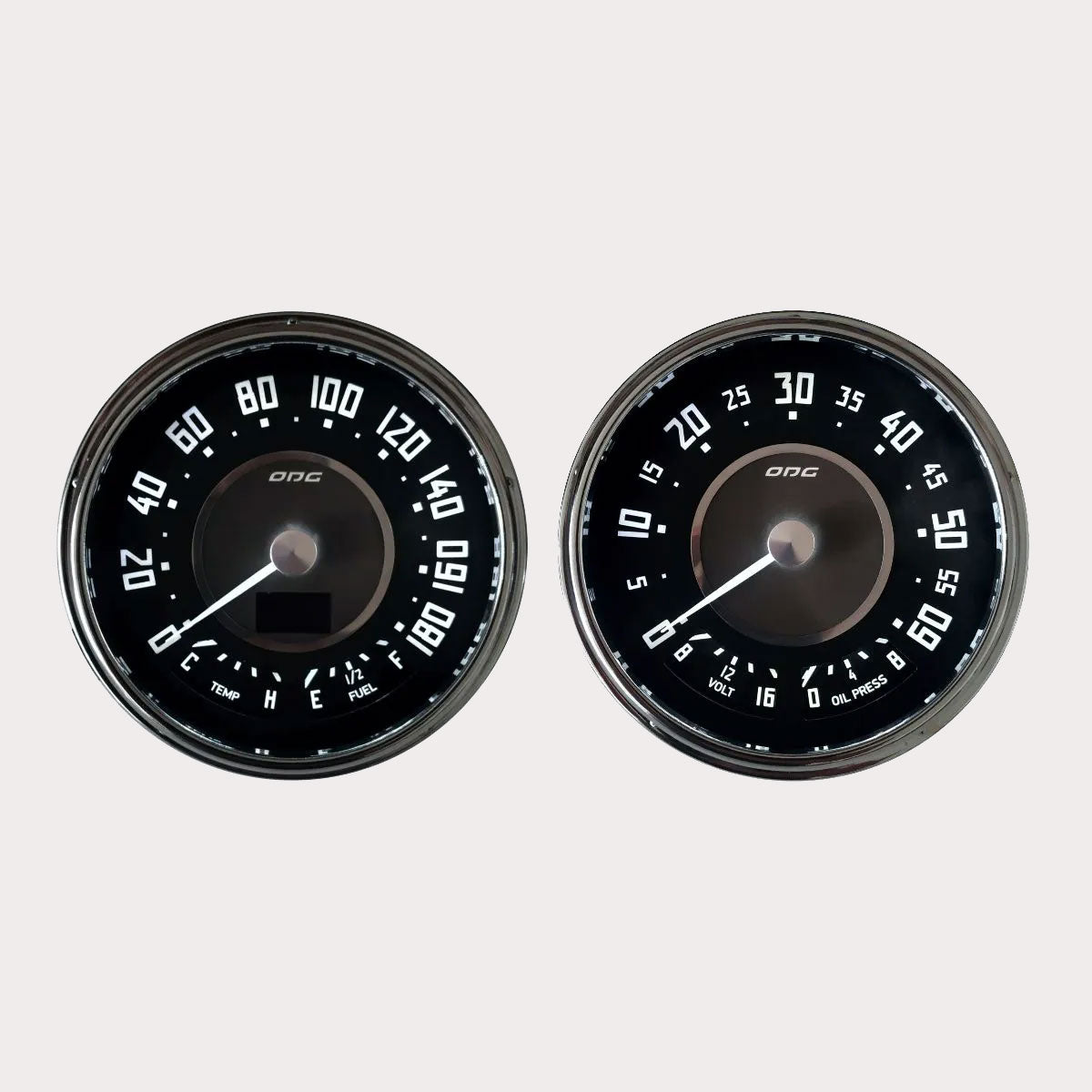

Flush Mount Instrument Set (135 mm hole) Inspired by American Chevrolet Pickups Manufactured Between 1947 and 1953 "Frog Mouth" or Any Other Compatible Vehicle

This set features a speedometer with total and trip odometers, a tachometer, a fuel level indicator, an electronic oil pressure gauge with sensor, and a battery voltage indicator.

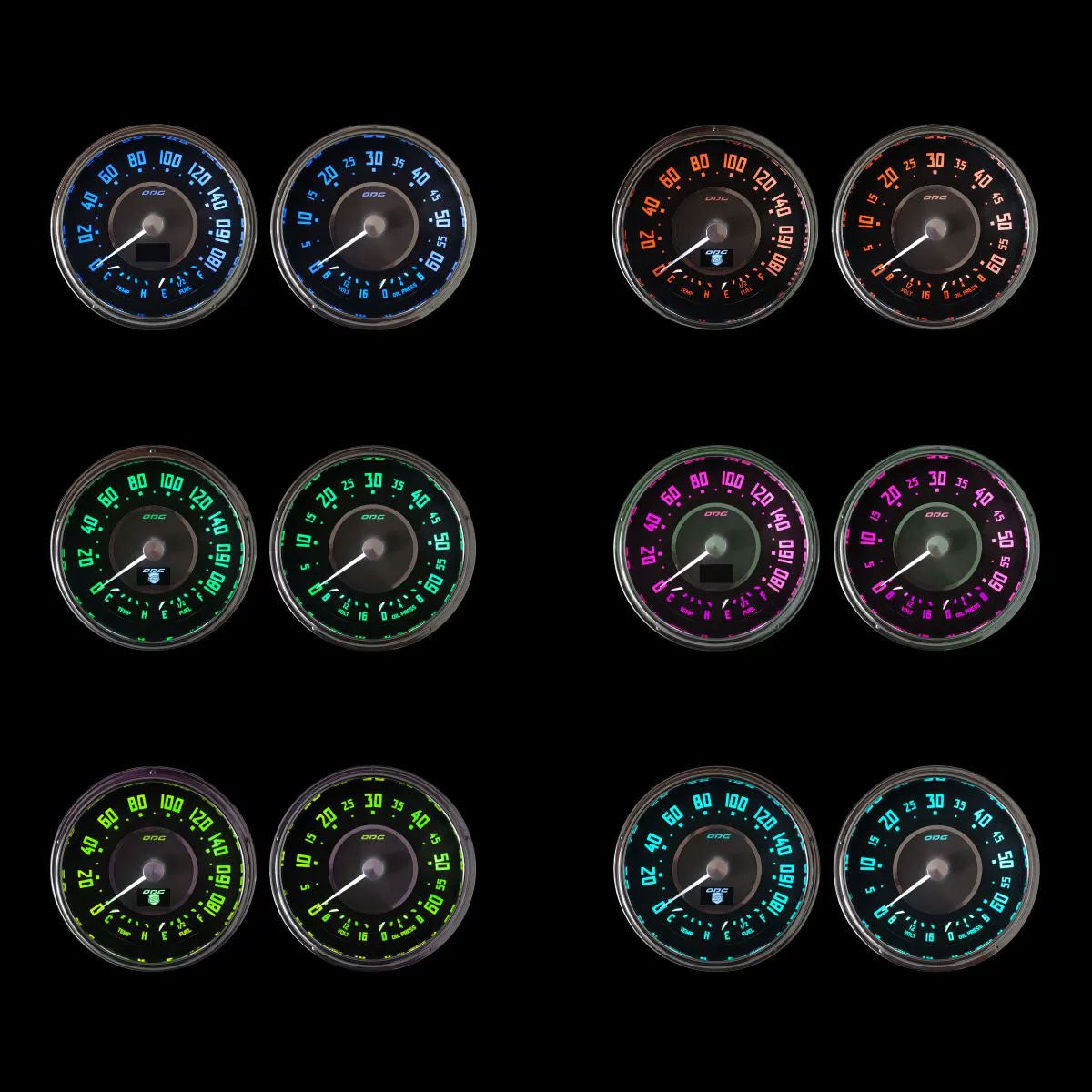

Its translucent lighting includes 7 selectable colors and a DIMMER function for brightness control. The needles are illuminated in white.

FEATURES IN DETAIL:

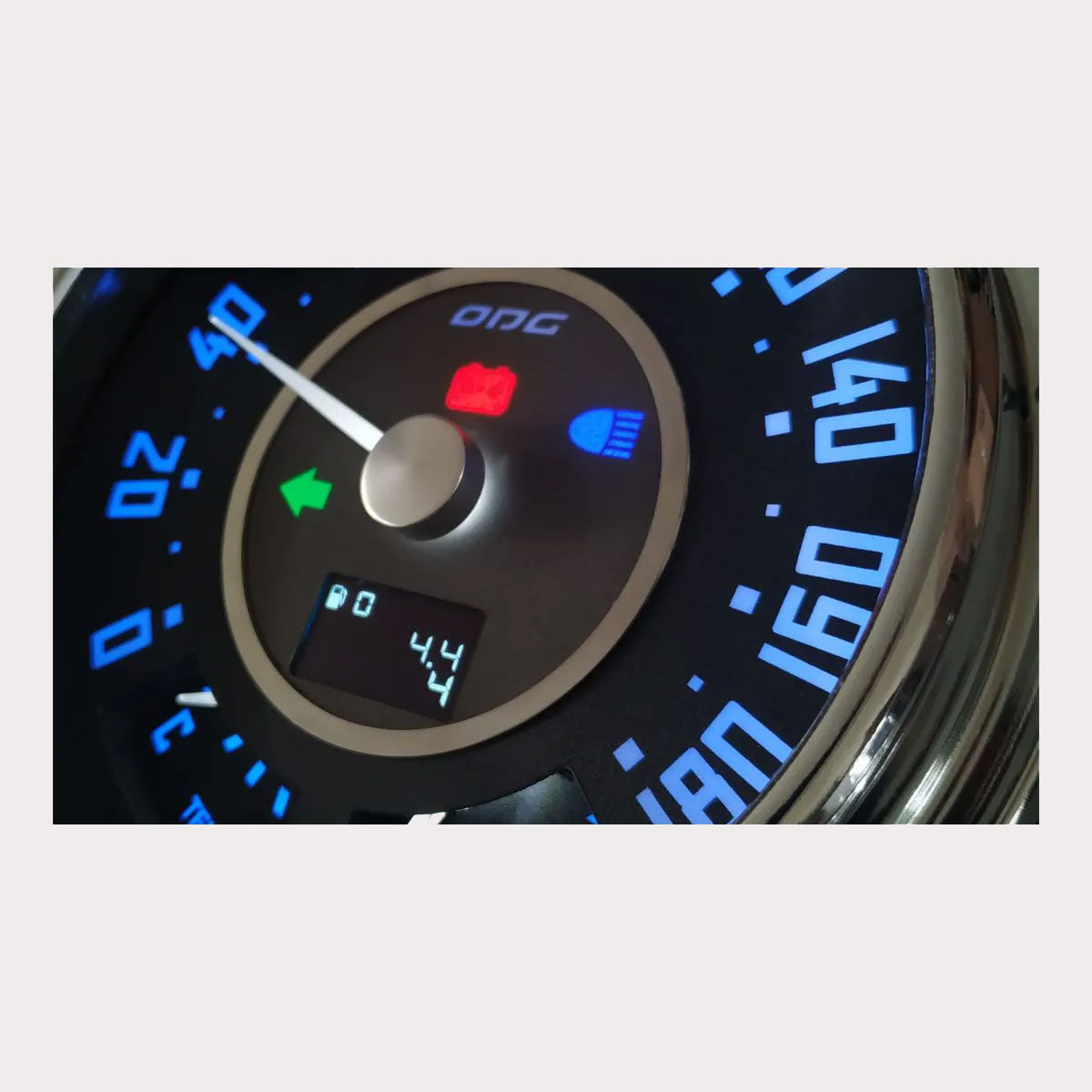

SPEEDOMETER

  • With a scale up to 180 km/h, it is fully configurable and can work with any transmission ratio and tire outer diameter; just install a speed sensor (not included).
  • Accepts signals from inductive sensors with a minimum amplitude of 1 Vpp peak-to-peak (-1Vpp-) as well as square wave signals.
  • Offers various methods for speed calibration, including a very easy 60 km/h method.
  • The total odometer can be set to an initial KM value, useful for maintaining the vehicle's original mileage.
  • The trip odometer can be reset at any time using the keypad.
  • Once configured, speed indication is accurate.

TACHOMETER

  • With a scale up to 6000 RPM, it works with Otto cycle engines (4, 6, and 8 cylinders) or Diesel cycle engines. Not recommended for points ignition systems.
  • For DIESEL engines, the RPM signal must be obtained from the W terminal of the alternator.

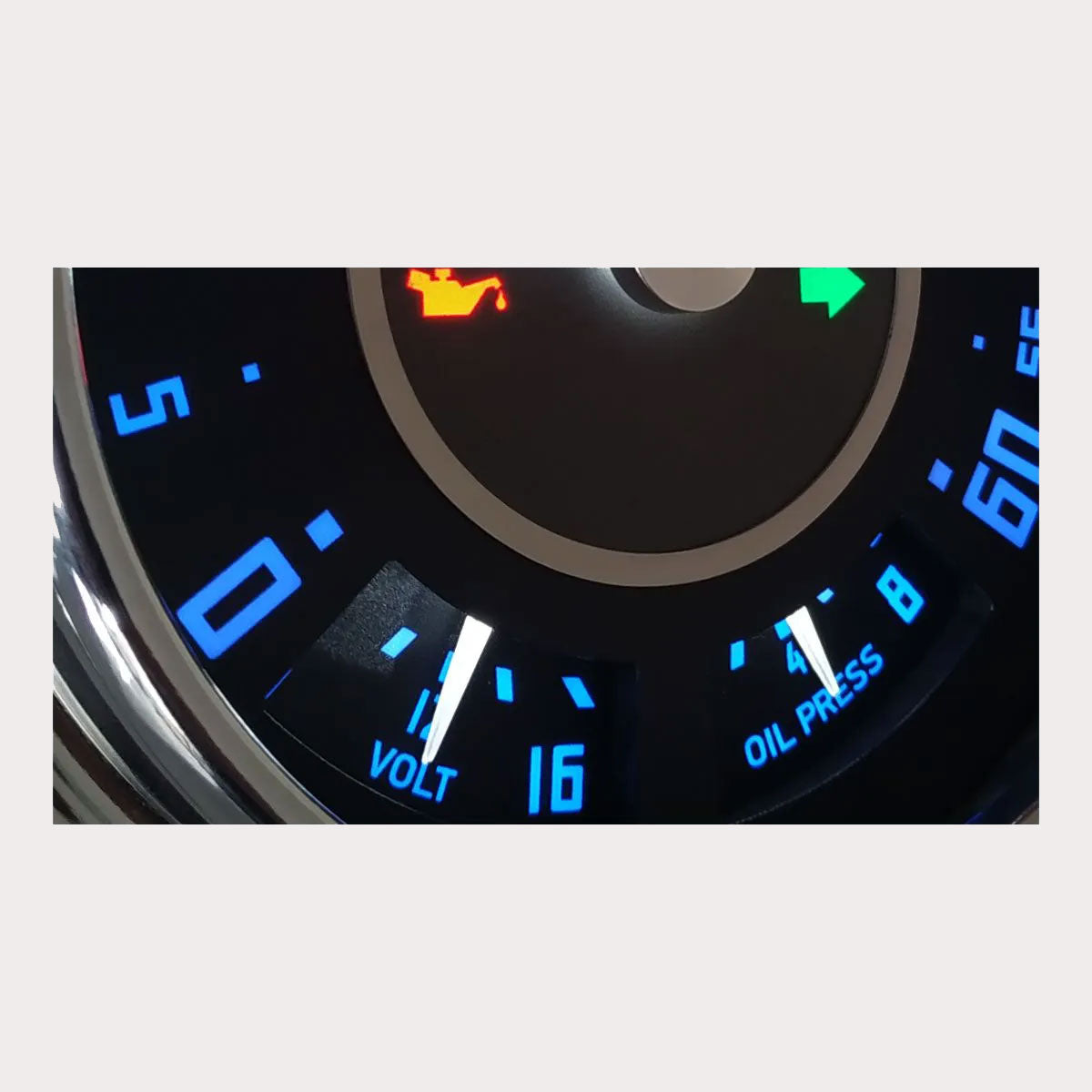

OIL PRESSURE GAUGE

  • Electronic, works with a pressure sensor installed directly on the engine, eliminating the need for hoses carrying fluid into the vehicle.
  • The sensor is highly robust and can withstand 2X its working pressure without damage.
  • The pressure sensor and its harness are included with the panel.

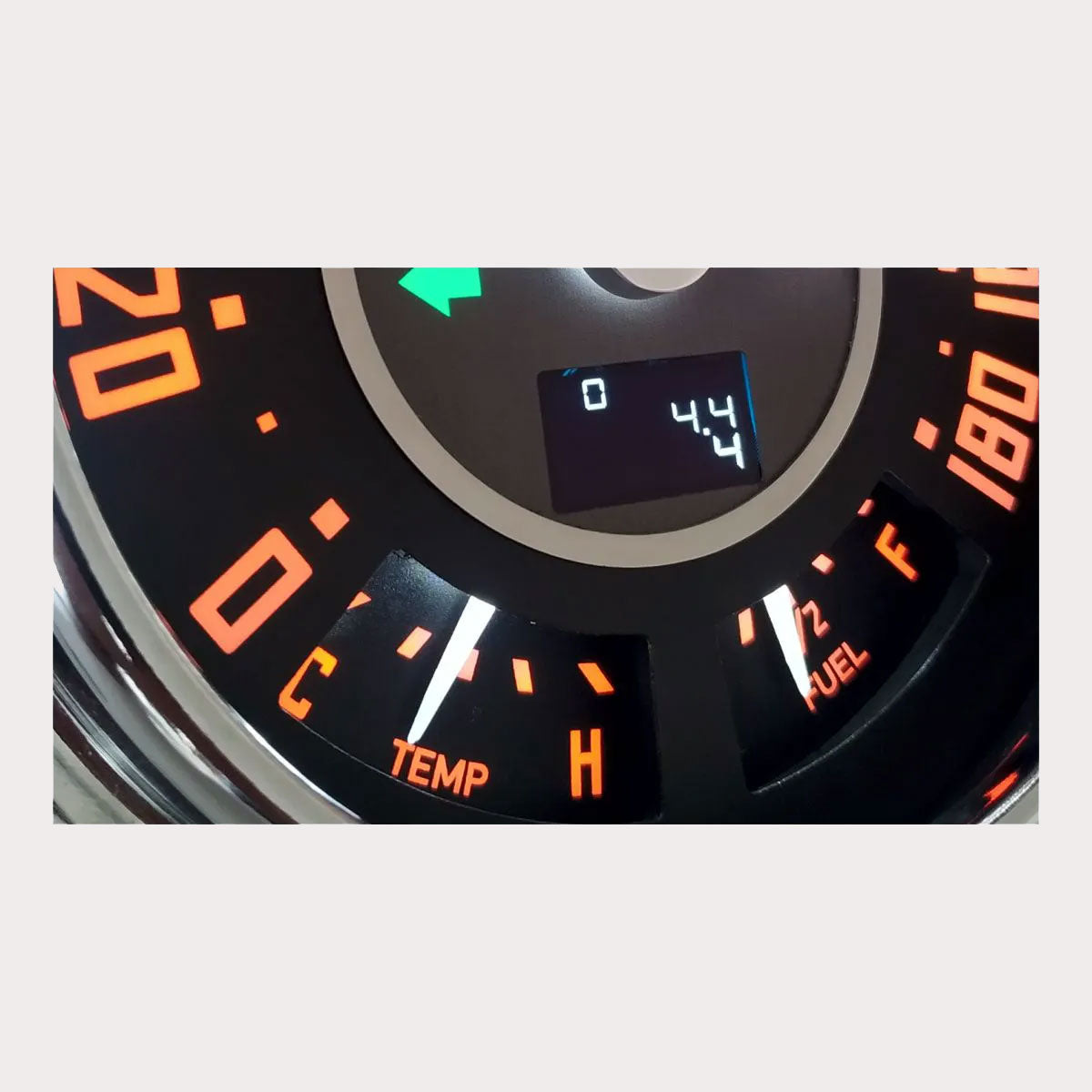

ENGINE TEMPERATURE INDICATOR

  • Electronic, works with a modern temperature sensor (model MTE4054 / ODG 052.0.0.0.3), featuring two wires for excellent performance.
  • The temperature sensor and its harness are included with the panel.

FUEL LEVEL INDICATOR

  • Programmable for any float and tank combination. Programming is easy and can be done in two ways: by entering resistance values for empty, half, and full tank, or by filling the tank with fuel. Additionally, you can choose from one of 4 pre-programmed floats.

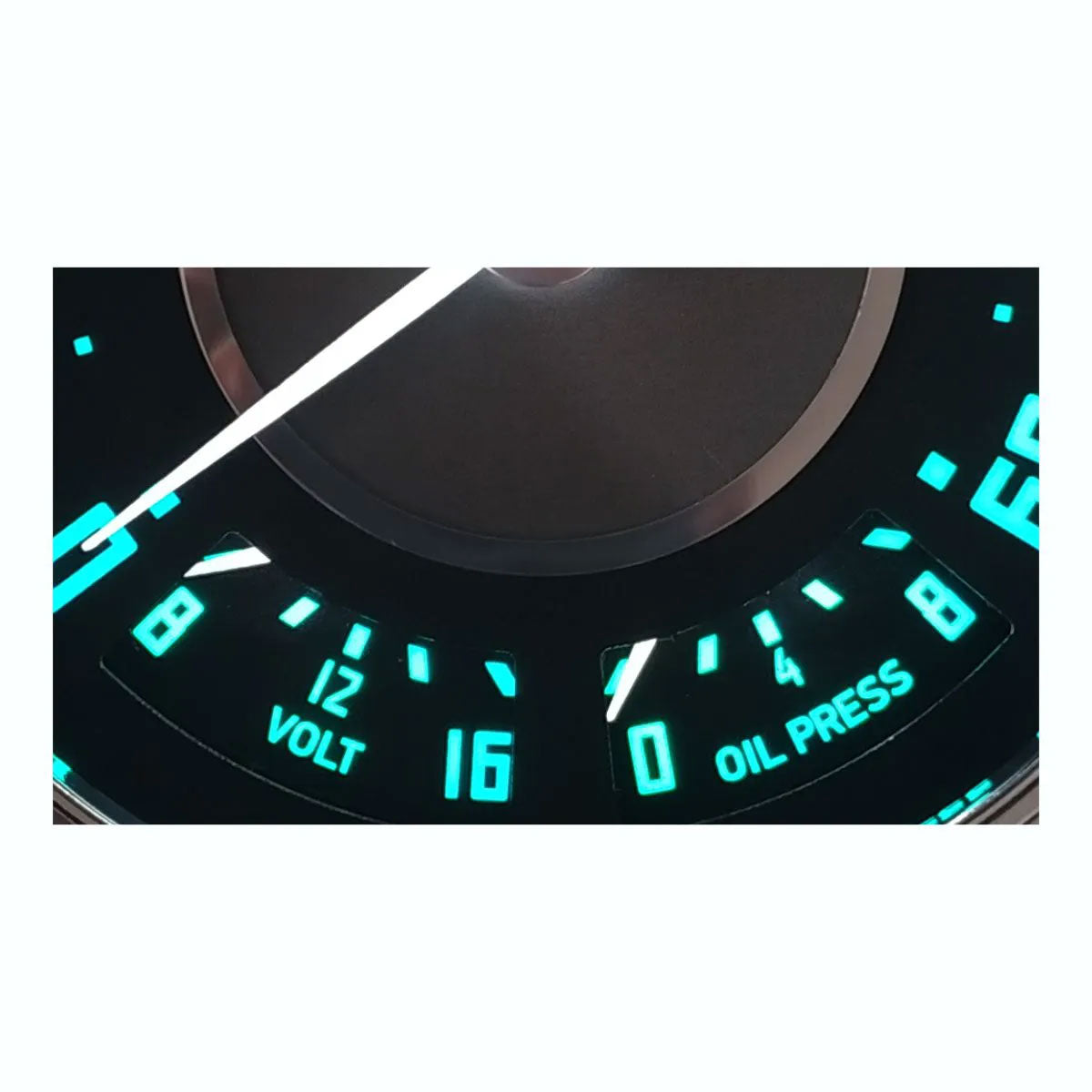

BATTERY VOLTAGE INDICATOR

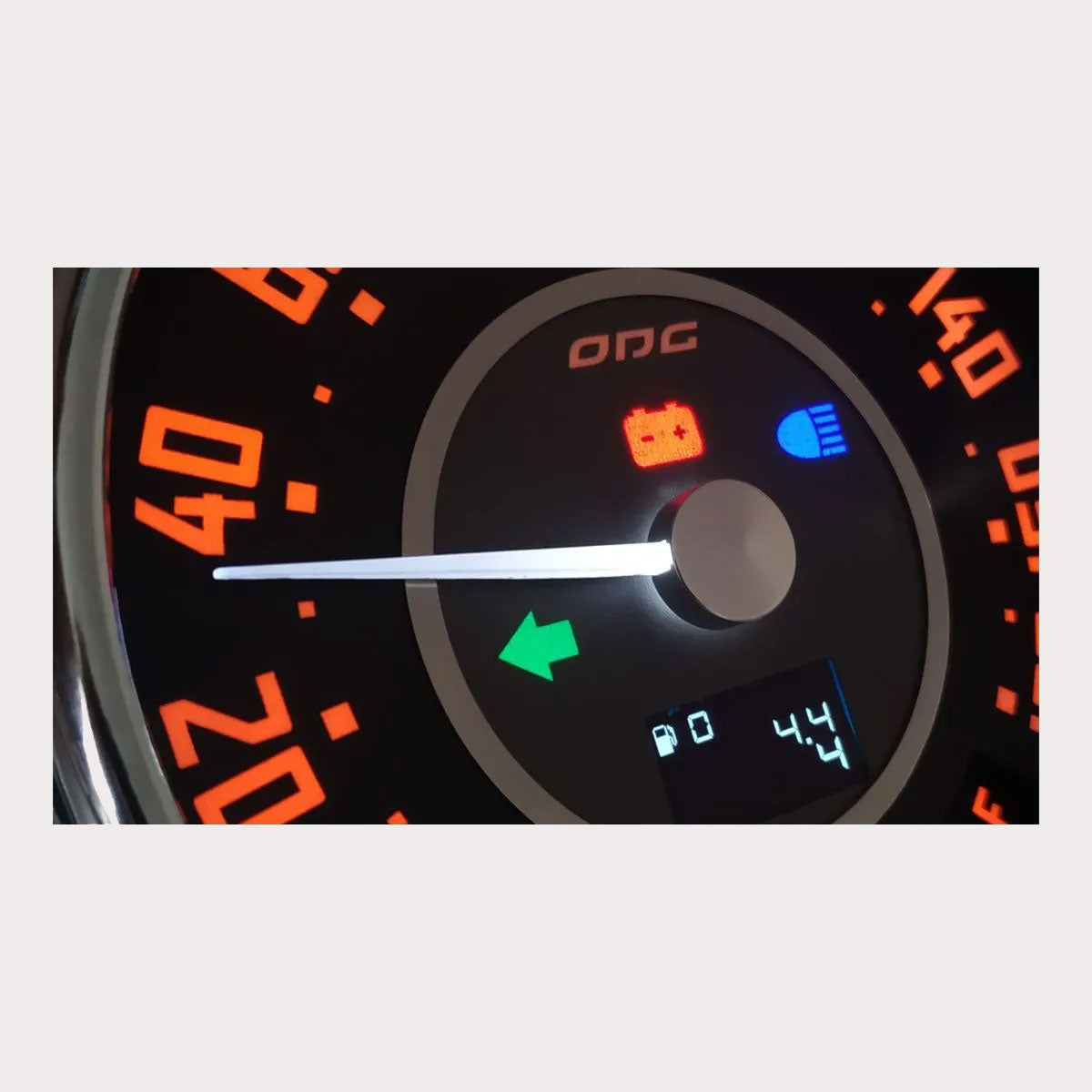

WARNING LIGHTS

  • Features 6 indicators covering the vehicle’s most important signals (Alternator, oil pressure, brake, left turn signal, right turn signal, and high beam).

Technical Specifications:

  • Operating voltage: 12 VDC
  • Speed range: 0 to 180 km/h
  • RPM range: 0 to 6,000 RPM (resolution of 250 RPM)
  • Engine temperature range: 40 to 120 degrees Celsius
  • Fuel level indicator with 4 pre-programmed floats and an adjustable float option
  • Oil pressure gauge scale: 0 to 8 BAR
  • Programmable for any transmission ratio (requires sensor)
  • Warning lights with 6 indicators
  • Easy parameter configuration through the display and accompanying keypad

Requirements:

  • For the speedometer: a 2 or 3-wire speed sensor.
  • For the fuel level indicator: a level sensor/float with a maximum resistance of 1000 Ohms.

12-month warranty against manufacturing defects
