Cluster Ford F100 - 1967-72

This high-performance automotive instrument is designed to provide a complete and customized experience for your vehicle. For detailed information on pricing and purchasing conditions, please contact us directly. Our team is ready to assist you with all the details you need.

Download the manual in PDF (Milhas)

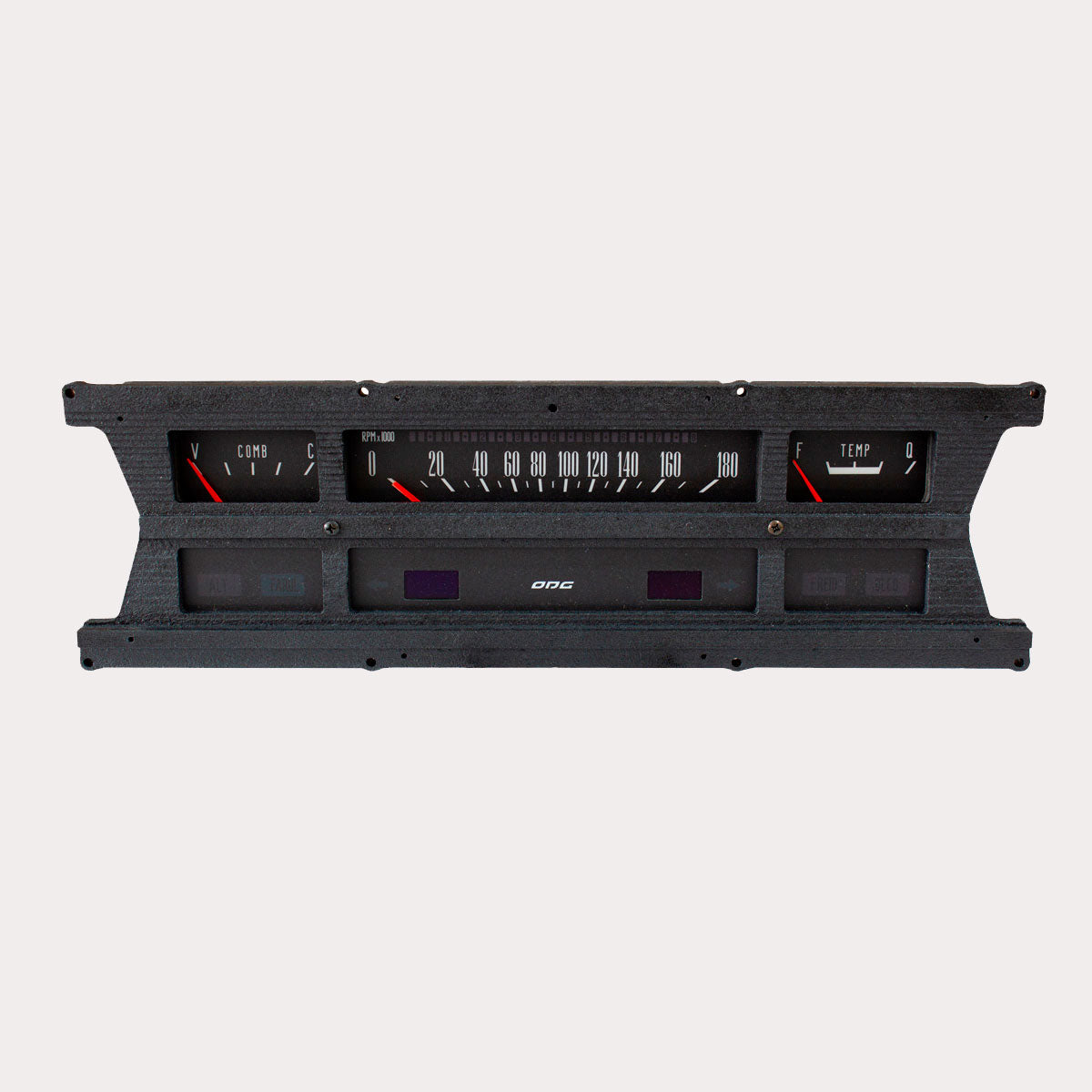

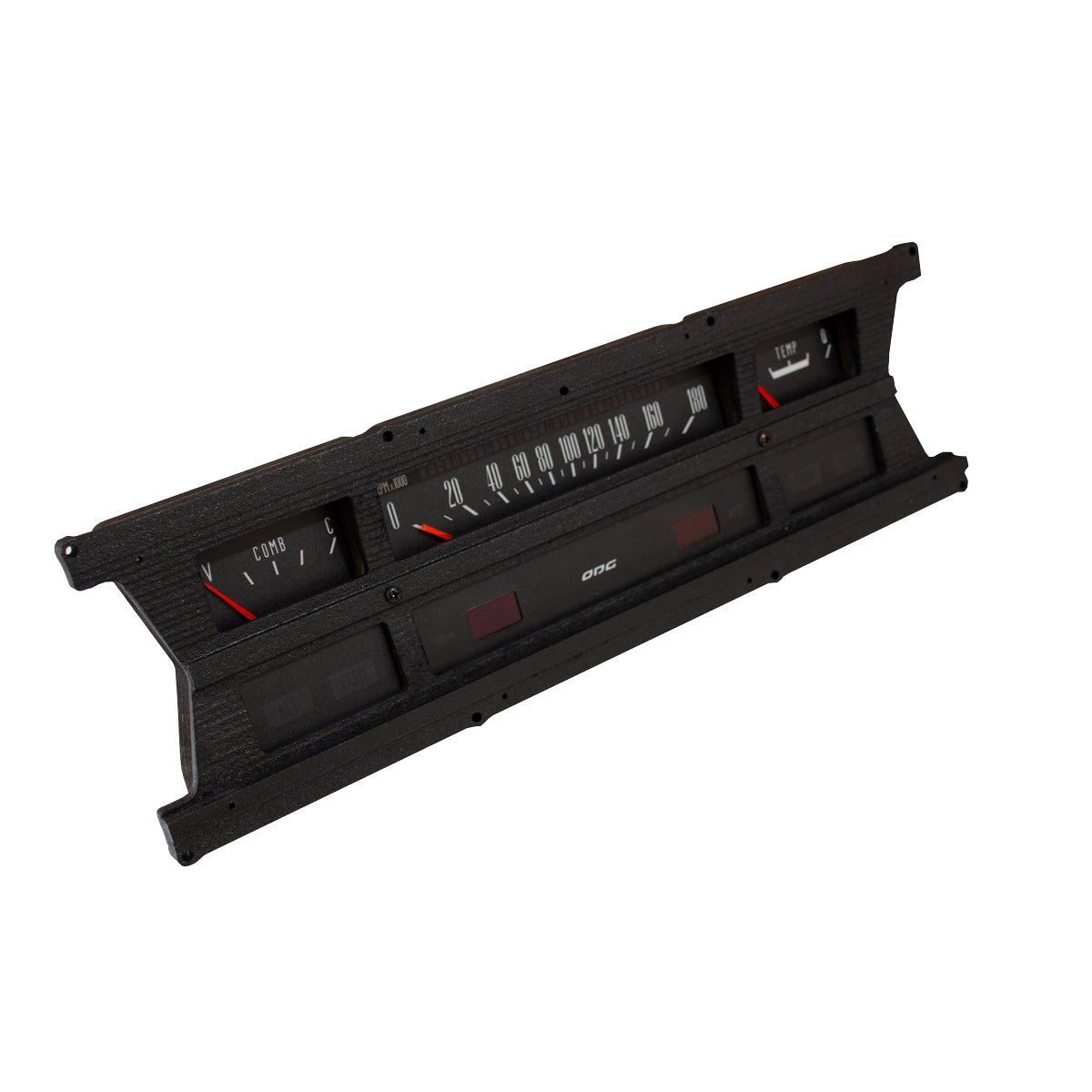

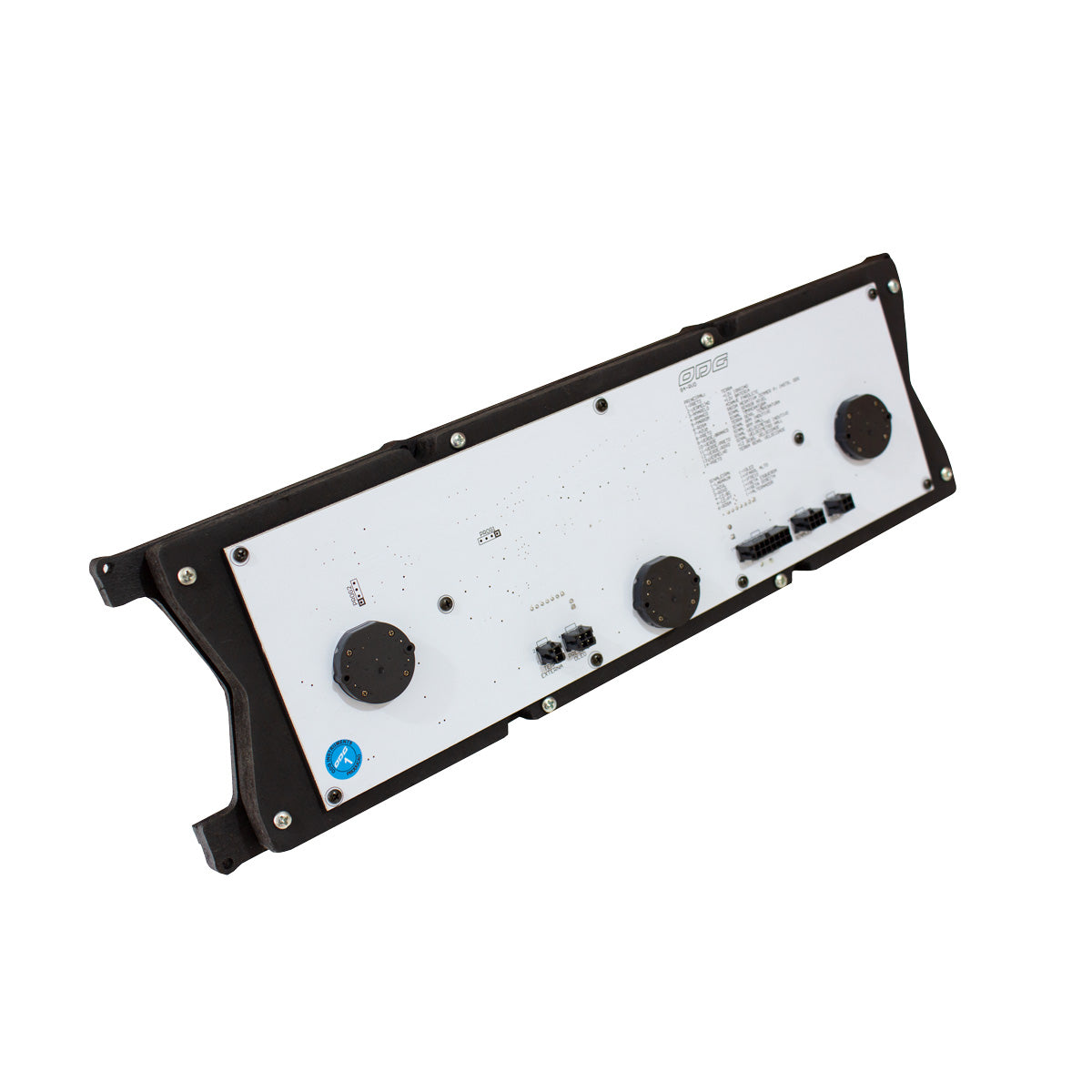

Instrument Panel for Ford Pickups Manufactured Between 1967 and 1972 or Compatible Models.

This panel replaces the original instrument panel.

It features a speedometer with total and trip odometers; a tachometer represented by a graphic bar; a fuel level indicator; an electronic engine temperature indicator; an electronic oil pressure indicator with sensor; an external temperature indicator; and six warning lights.

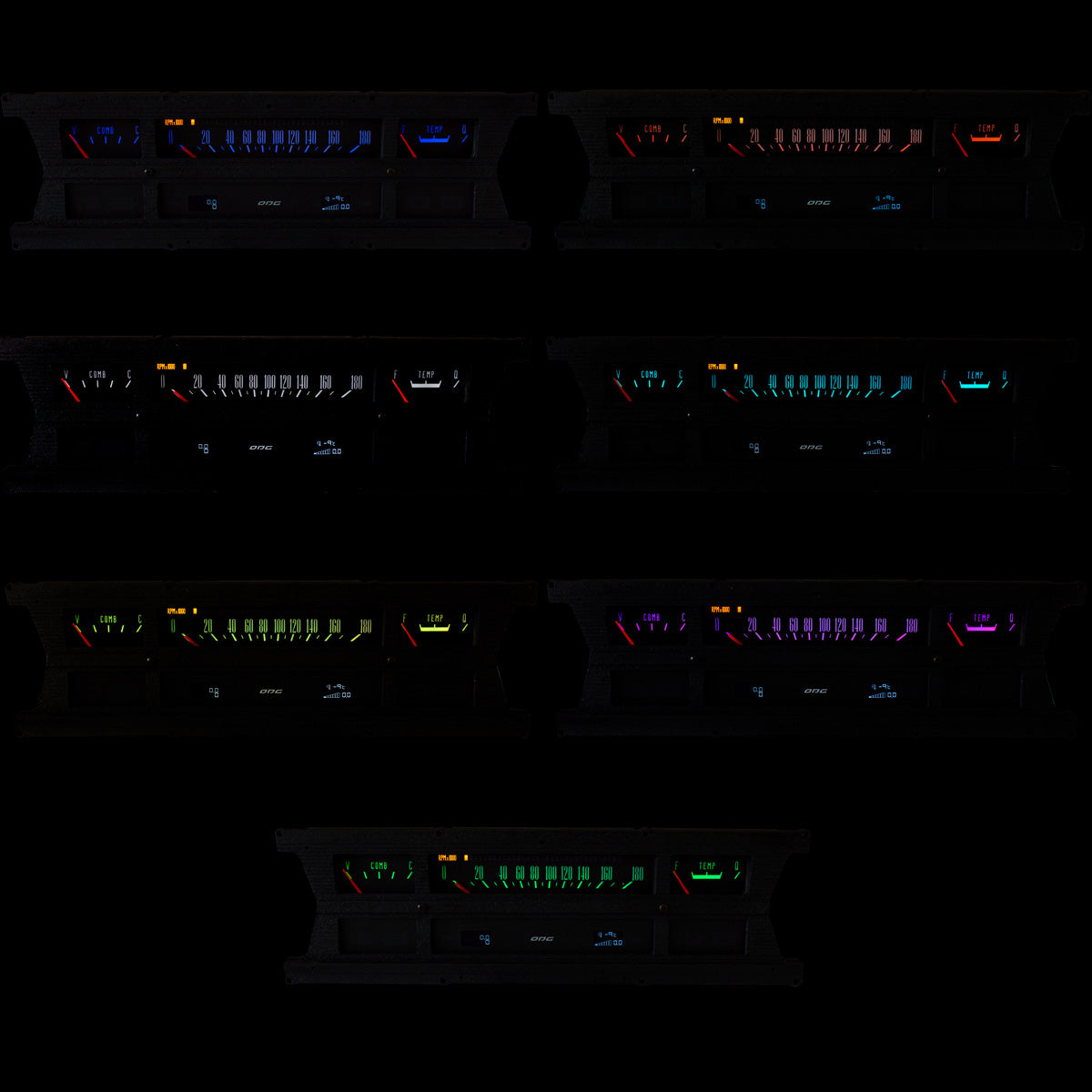

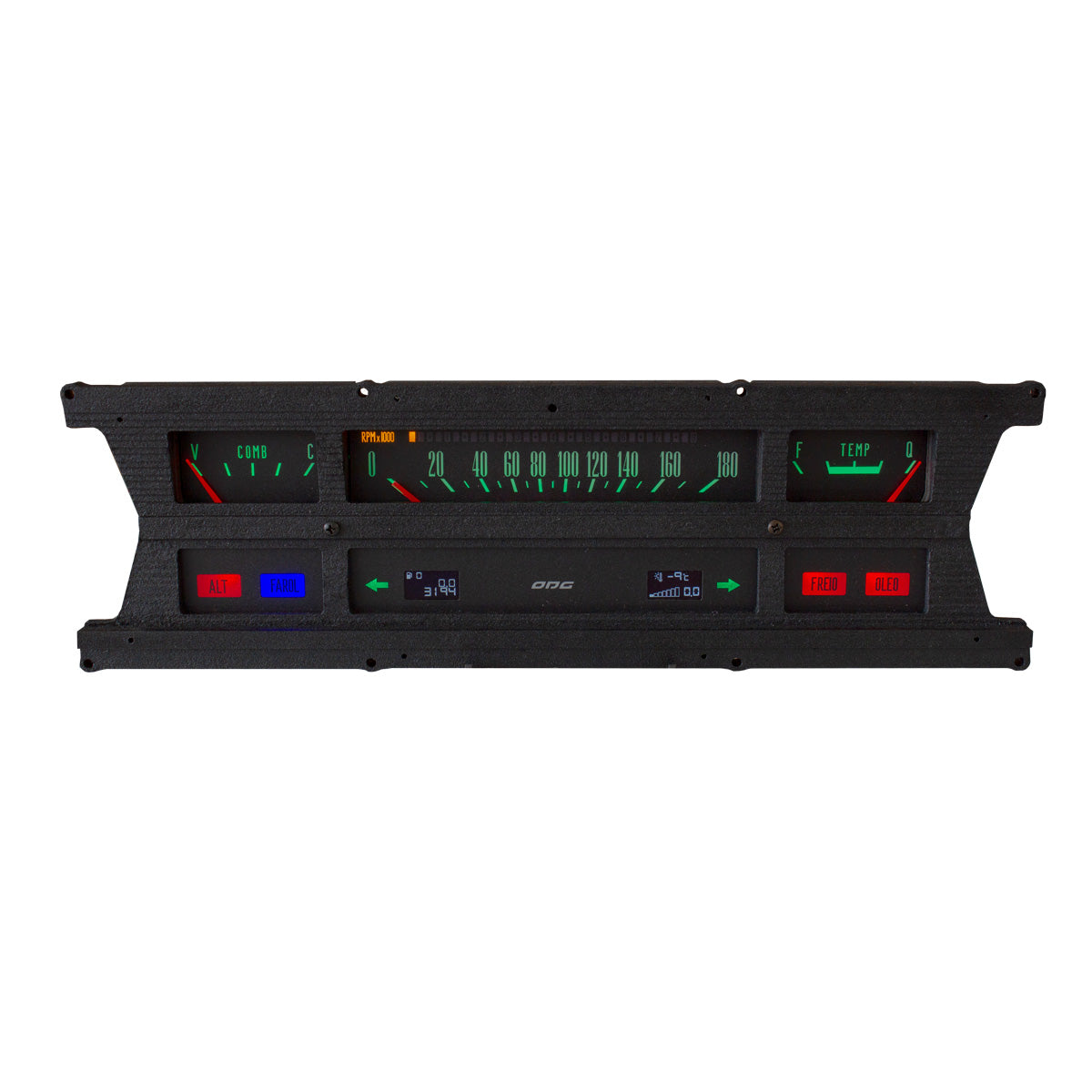

Its translucent lighting comes in 7 selectable colors and includes a DIMMER function for brightness control. The pointers are illuminated in red.

Installation is straightforward: the old panel must be removed from the original frame (the frame is not included), which will receive the new panel.

DETAILED FEATURES:

SPEEDOMETER
With a maximum scale of 180 km/h, it is fully configurable and can operate with any transmission ratio and tire outer diameter; a speed sensor must be installed (not included).
It accepts signals from inductive sensors with a minimum amplitude of 1 Vpp peak-to-peak (–1Vpp–) as well as square wave signals.
There are various ways to calibrate the speed, including an extremely easy method for 60 km/h.
The total odometer can be set with an initial KM value, a useful function to maintain the vehicle's original mileage.
The trip odometer can be reset at any time using the keypad.

Once configured, the speed indication is perfect.

TACHOMETER
Displayed as a graphic bar with a maximum scale of 8000 RPM, it works with Otto cycle engines (4, 6, and 8 cylinders) or diesel cycle engines. It is not recommended for points ignition systems.
In diesel engines, the rotation signal must be obtained from the W output of the alternator.

OIL PRESSURE INDICATOR (MANOMETER)
Fully electronic, displayed on a screen, it works with a pressure sensor that is installed directly on the engine, eliminating the need for a hose to conduct fluid into the vehicle.

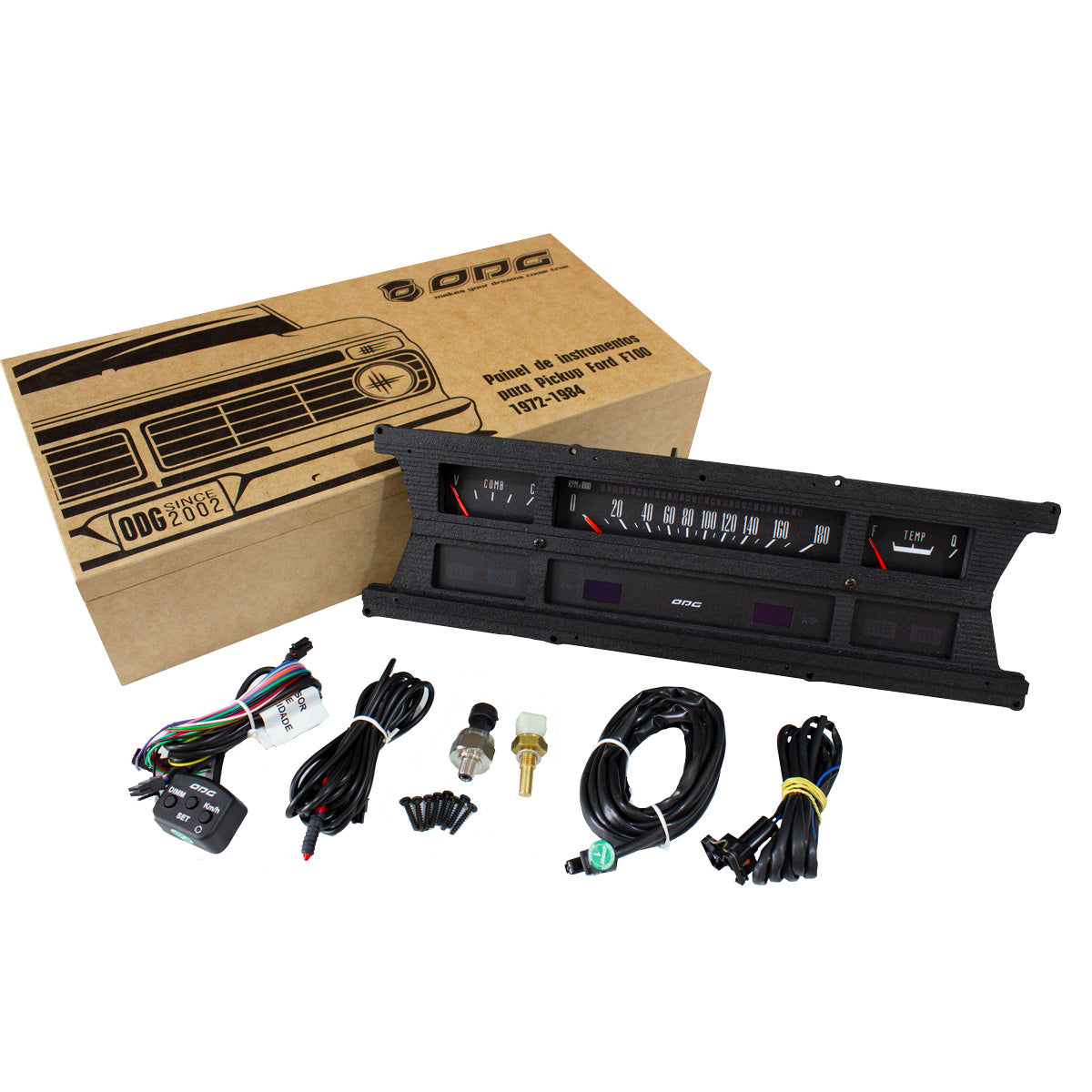

The pressure sensor and its wiring harness are included with the panel.

ENGINE TEMPERATURE INDICATOR
Electronic, it works with a modern temperature sensor (model MTE4054 / ODG 052.0.0.0.3), featuring two wires for excellent performance.
The temperature sensor and its wiring harness are included with the panel.

FUEL LEVEL INDICATOR
Programmable for any float and tank combination. Programming is straightforward and can be done in two ways: by informing the resistance values for empty, half, and full tank, or by filling the tank with fuel. In addition to programming options, you can also choose from one of four pre-programmed floats.

EXTERNAL TEMPERATURE INDICATOR
Allows monitoring of the temperature inside the cabin or the external air depending on where it is installed.

WARNING LIGHTS
Includes 6 indicators covering the most important vehicle signals (alternator, oil pressure, brake, left turn signal, right turn signal, and high beam).

Technical Specifications:

• Operating voltage: 12 VDC
• Speed scale: 0 to 180 km/h
• RPM scale: 0 to 8000 RPM (resolution of 250 RPM)
• Engine temperature scale: 40 to 120 degrees (following the original spelling, values are not displayed on the scale)
• Fuel level indicator with 4 pre-programmed floats and adjustable float option
• Oil pressure indicator scale: 0 to 8 BAR
• Programmable for any transmission ratio (requires sensor)
• Warning lights with 6 indicators
• Easy parameter configuration through the display and accompanying keypad

Requirements: For the speedometer: a 2 or 3 wire speed sensor.

For the fuel level indicator: a level/float sensor with a maximum resistance of 1K Ohms.

12-month warranty against manufacturing defects.
