This high-performance automotive instrument is designed to provide a complete and customized experience for your vehicle. For detailed information on pricing and purchasing conditions, please contact us directly. Our team is ready to assist you with all the details you need.
Download the manual in PDF (Milhas)
Download the manual in PDF (Quilômetros)

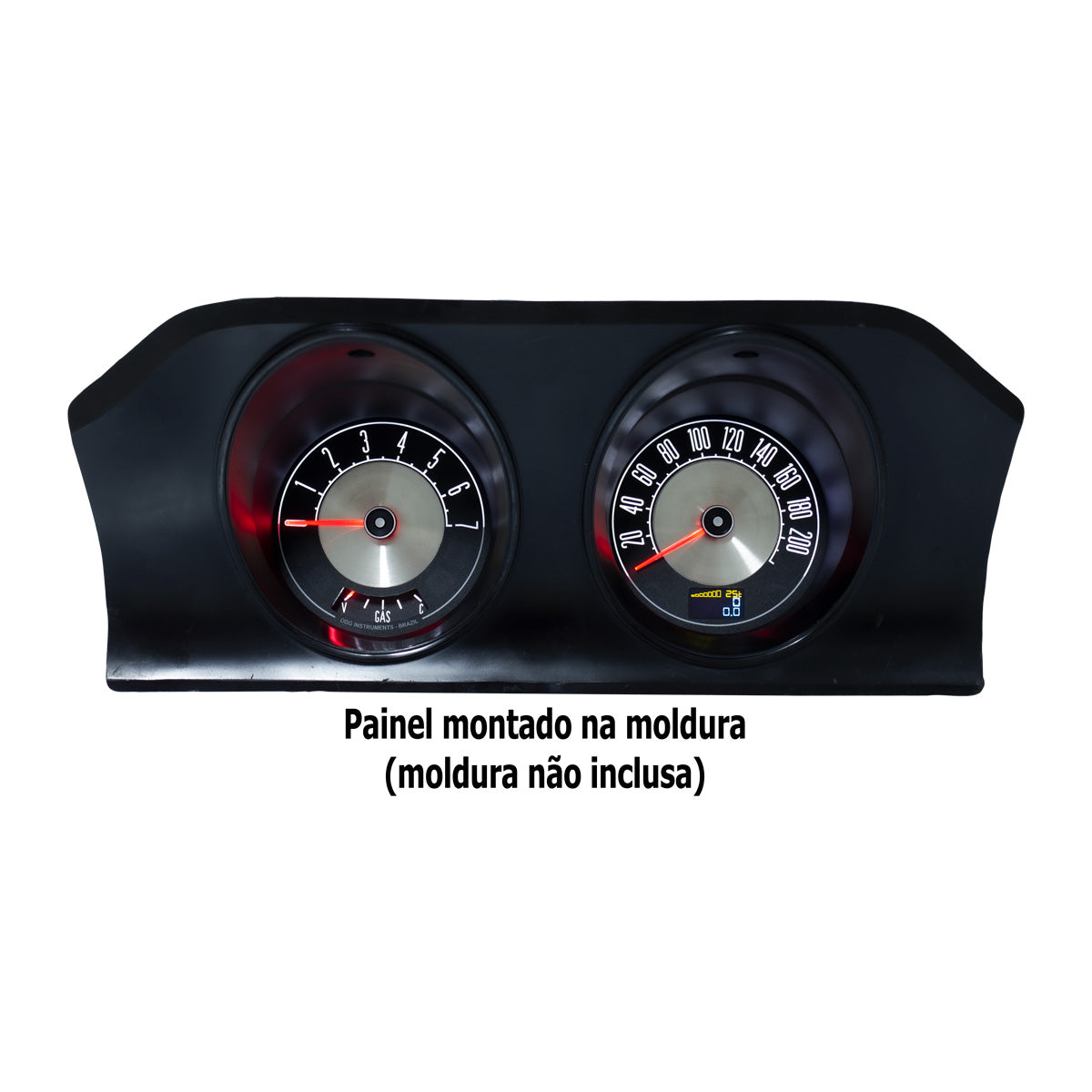

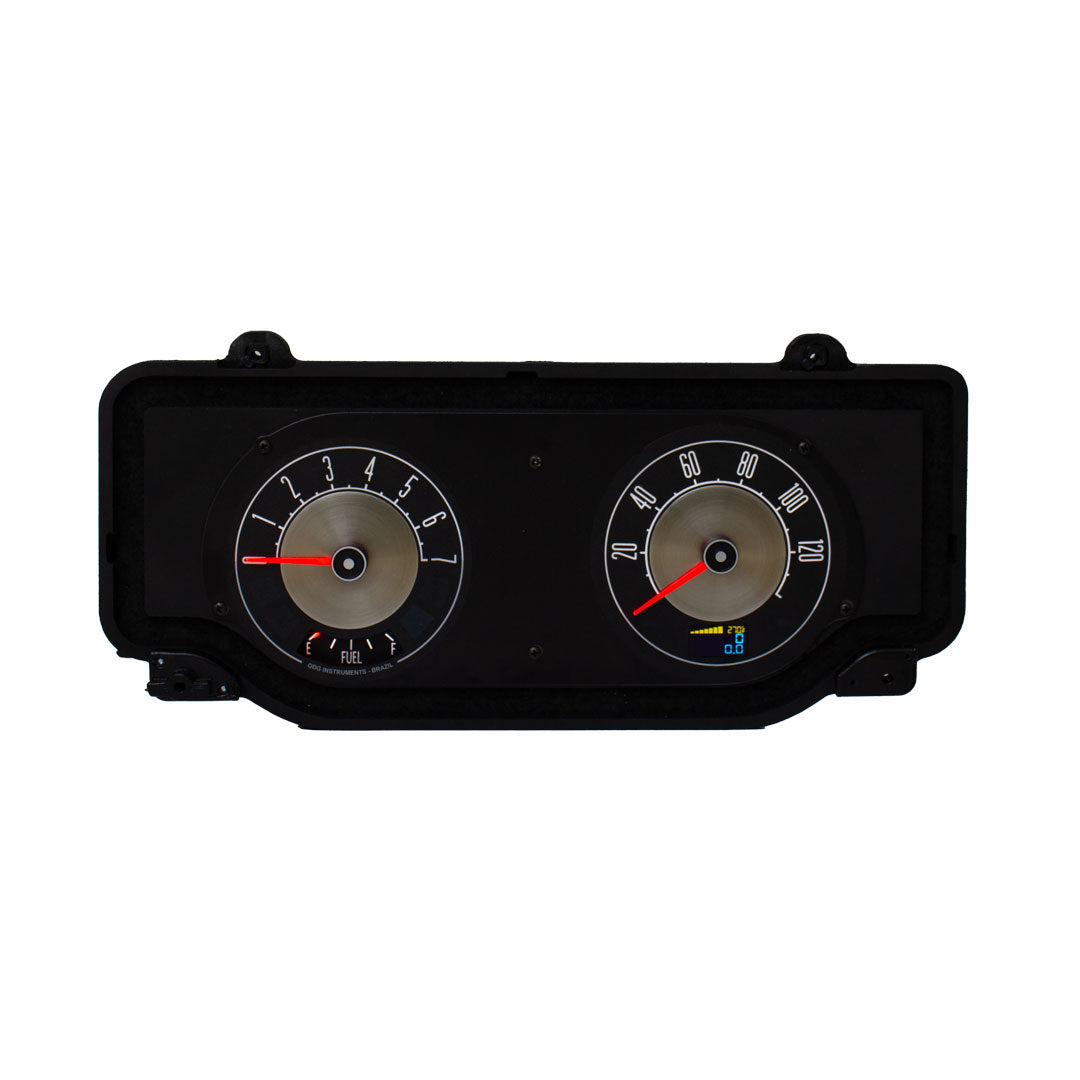

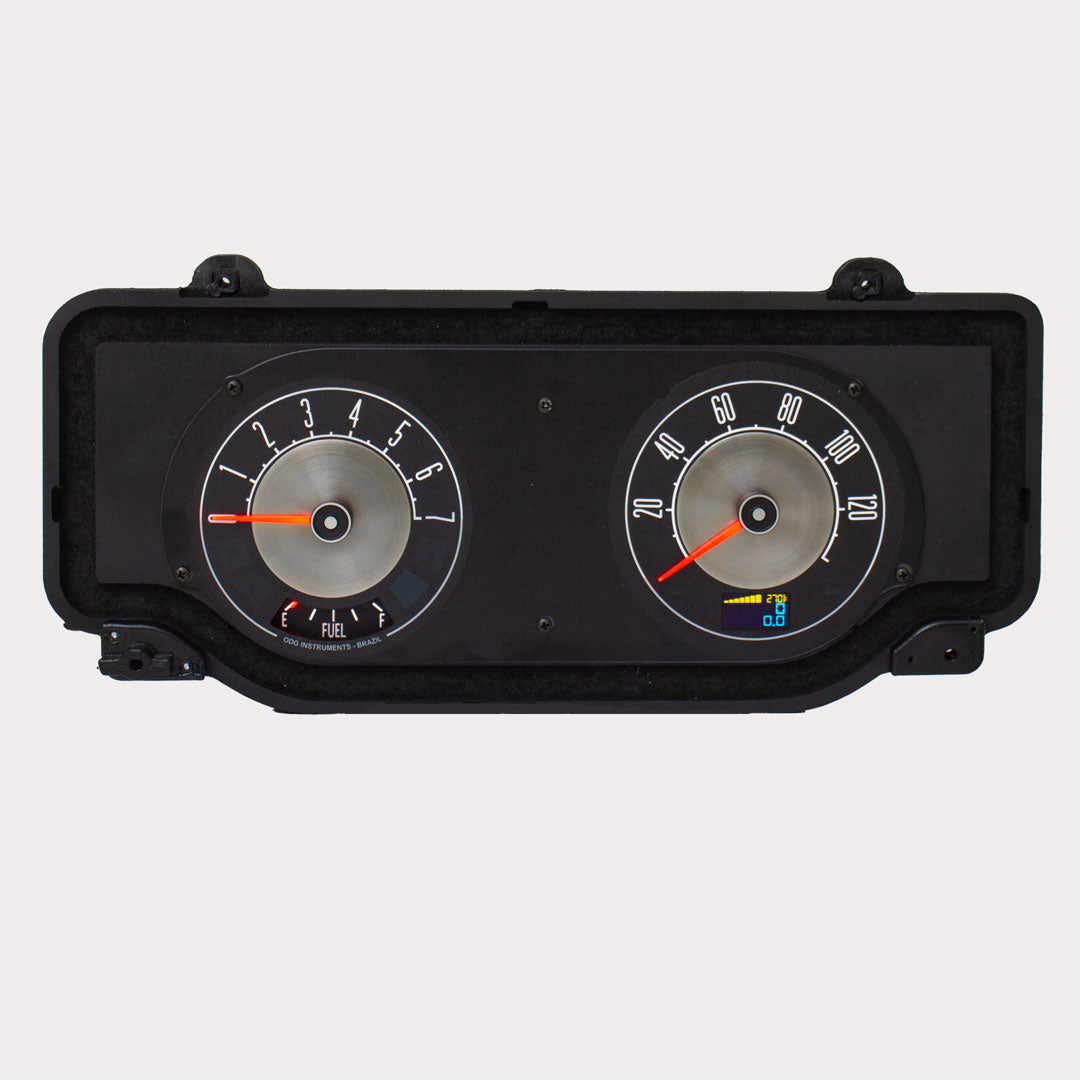

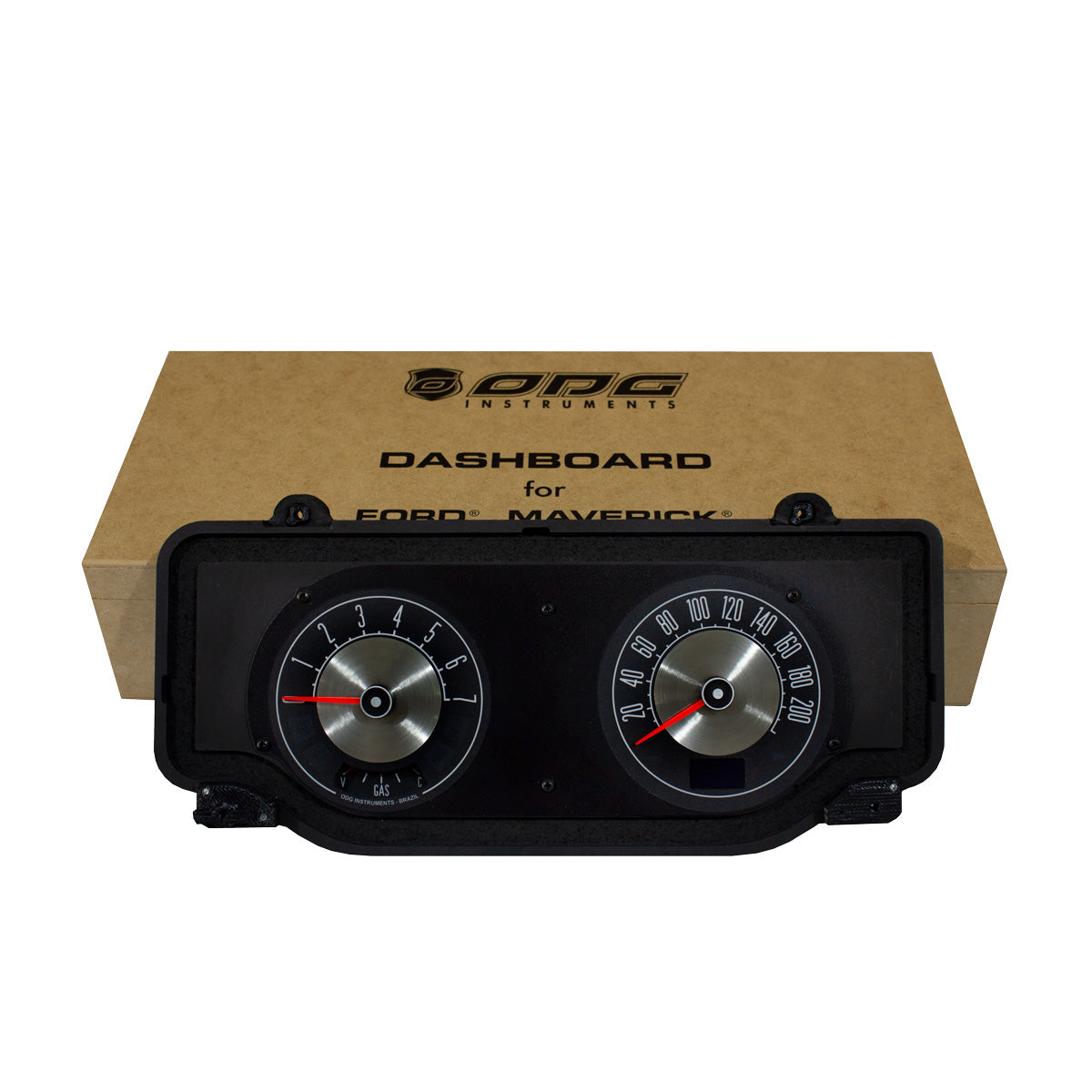

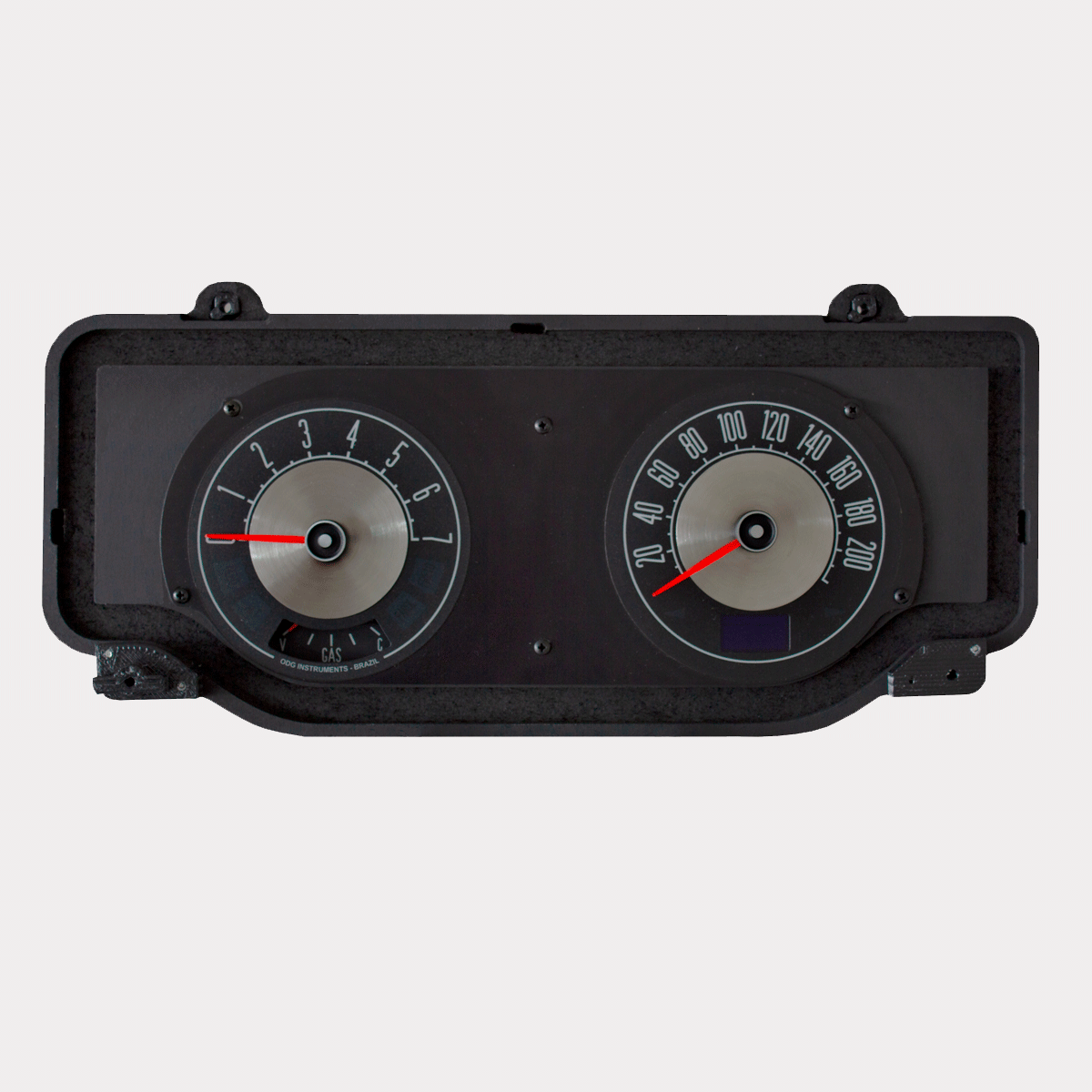

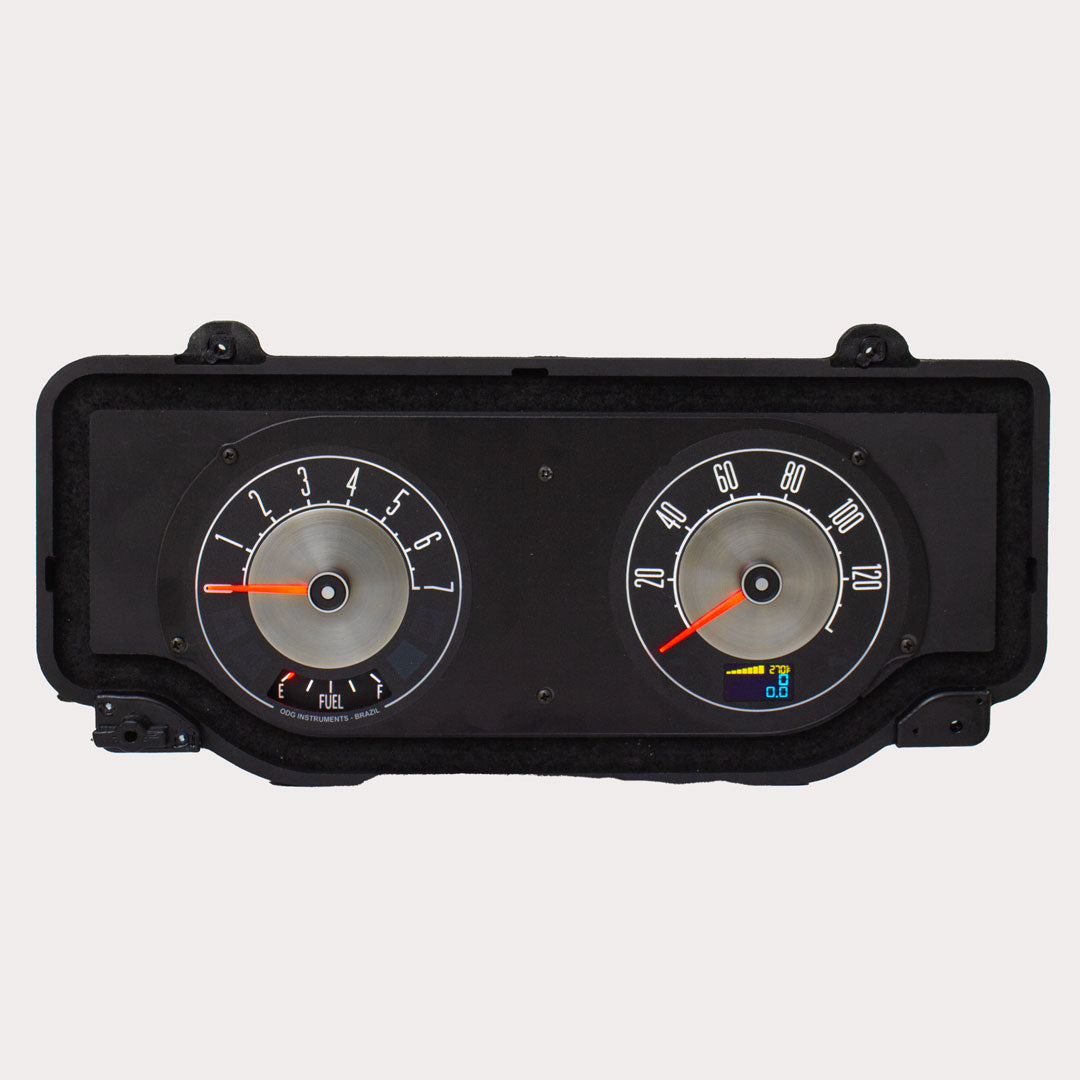

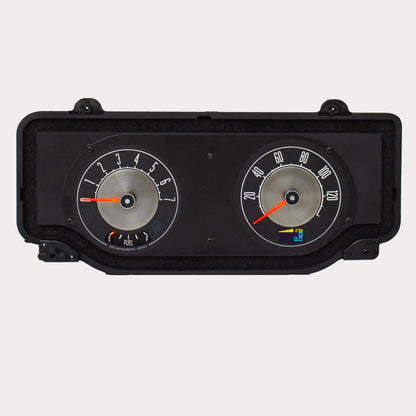

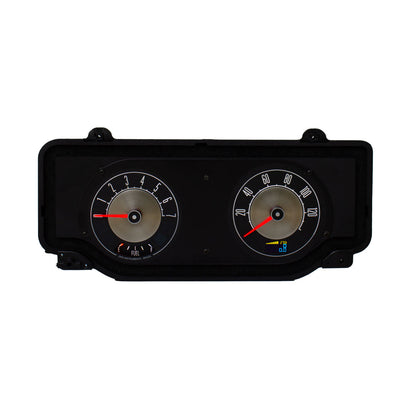

Complete Instrument Panel for Ford Maverick 1969-77
The design is inspired by the classic national model.
With translucent backlighting in 7 selectable colors, the panel features a design reminiscent of the original, and the gauge needles are illuminated in red.
This panel replaces the original instrument panel and includes an electronic speedometer with total and trip odometers, an electronic tachometer, a fuel level indicator, an engine temperature indicator, and turn signal indicators.

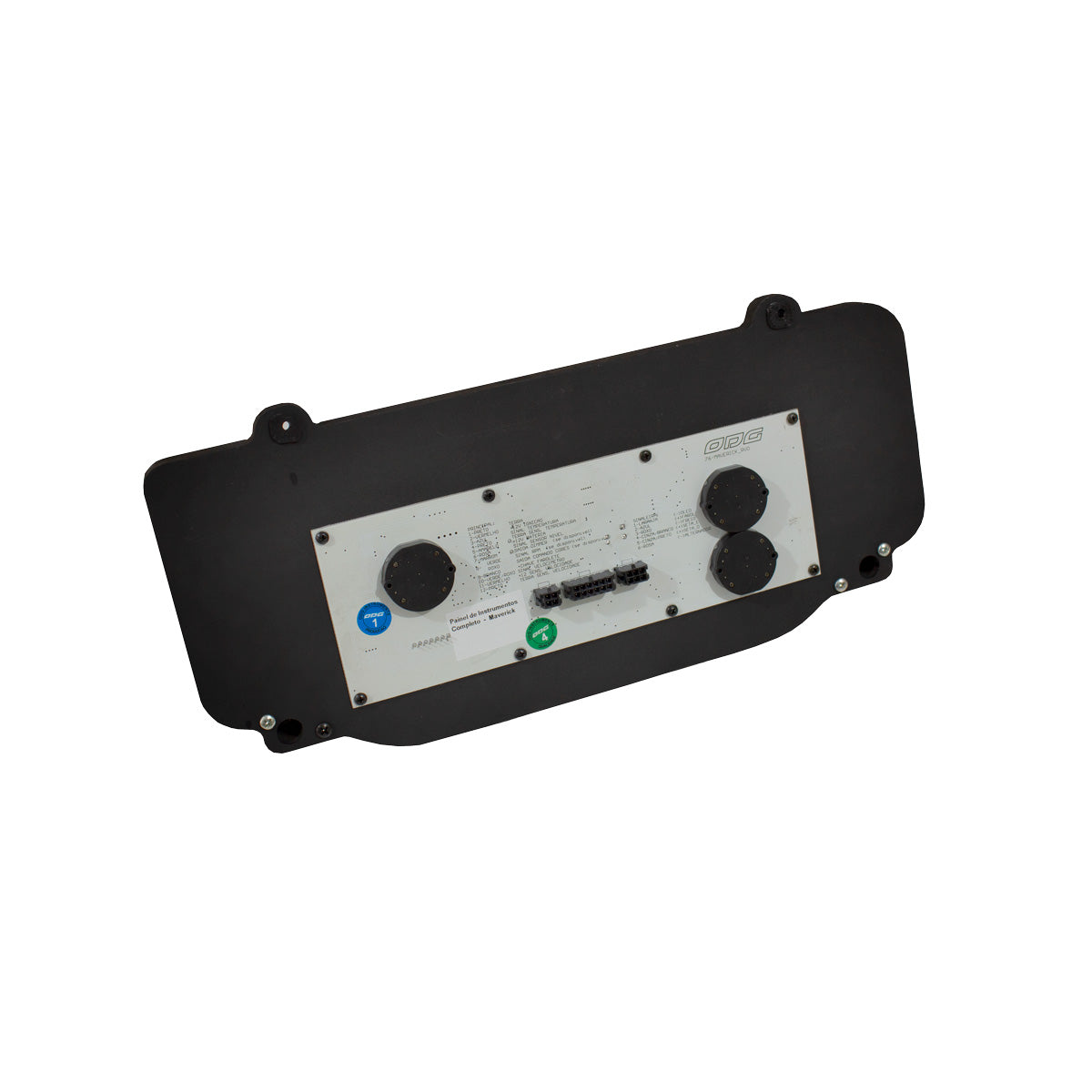

Installation is straightforward: simply remove the original instruments, place the new panel in position, and connect the wiring. No modifications are necessary.
The brightness of the backlighting can be adjusted using the DIMMER function on the keypad.
The tachometer has a high-speed response and works with 4, 6, and 8-cylinder engines, being compatible with electronic ignition systems, programmable fuel injection, and spark multiplier modules (MSD, Mallory, and similar) that have a tach output.
The speedometer receives its speed signal from a sensor that connects directly to the transmission, eliminating the need for the original speedometer cable. This sensor is included with the panel and was designed for installation in the original transmission.
After installation, the speedometer can be calibrated to function according to the vehicle's gear ratio and tire diameter. Once configured, the speed indication will be accurate.
The fuel level indicator works with any model of tank and float, requiring calibration starting from empty, half-full, and full. Like the speedometer, once configured, the indication will be very precise.
The motors driving the gauge needles have a long lifespan.

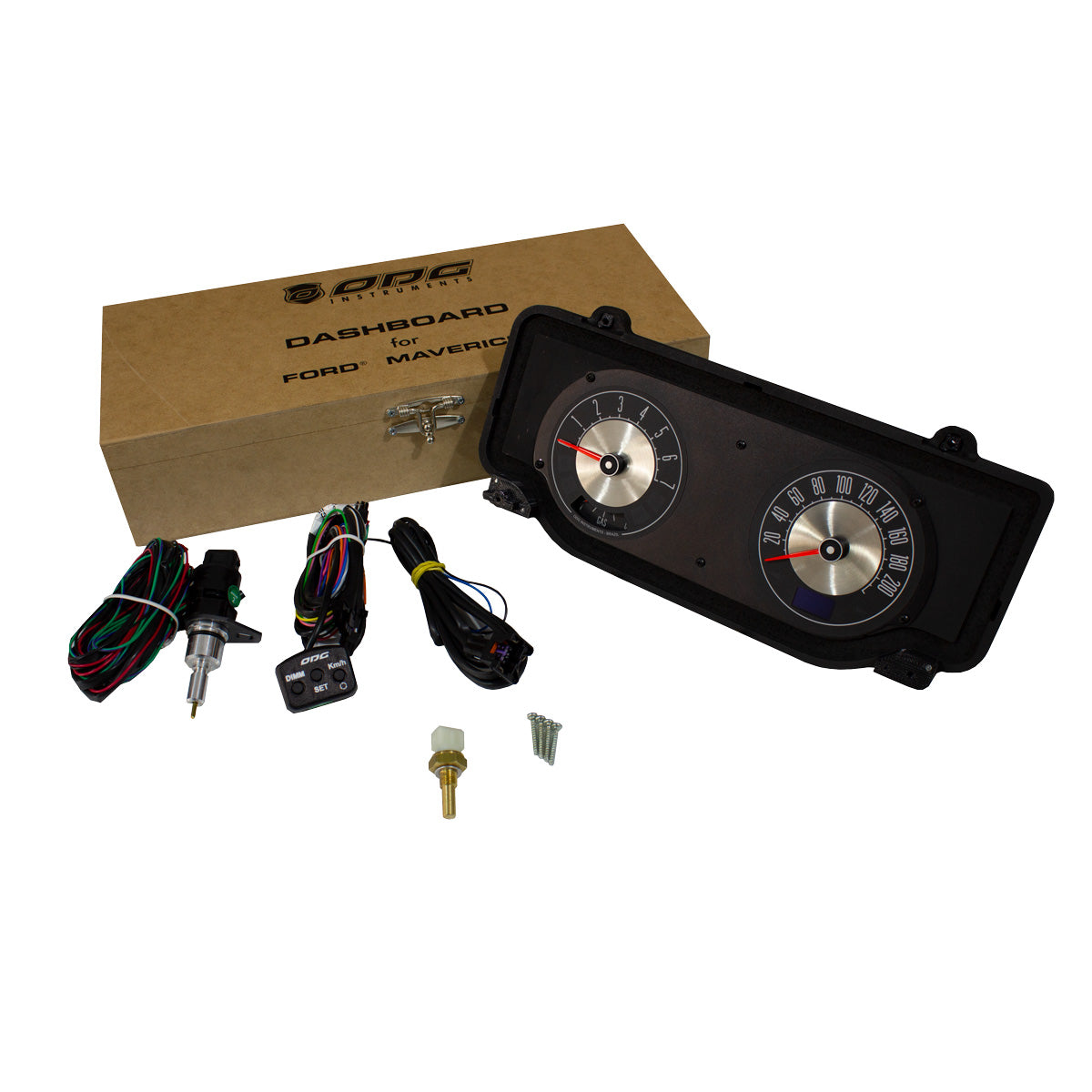

Included Items:
- Speed sensor (code: 145.0.0.0.3) for direct installation in the transmission, eliminating the speedometer cable;
- Temperature sensor with M12x1.5 thread;
- Configuration and operation keypad;

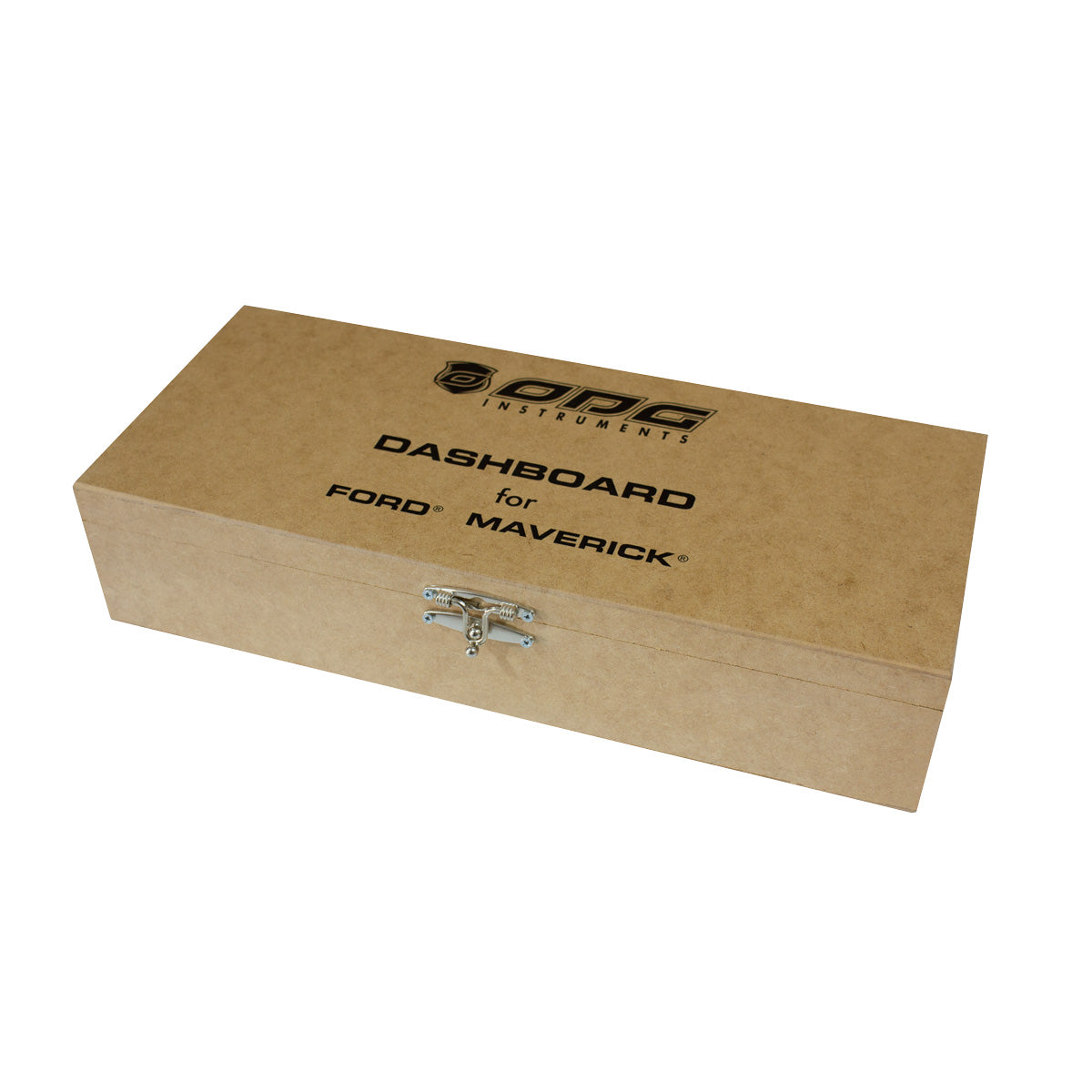

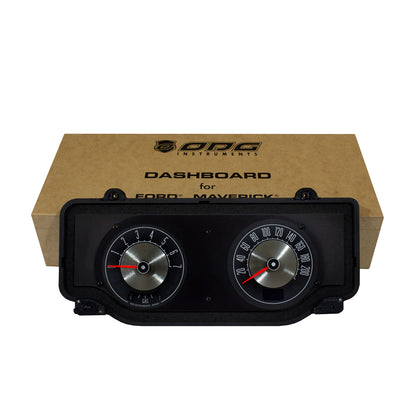

- Wooden packaging box;
Features:
- Fully electronic;
- Speedometer equipped with a high-contrast OLED display;
- Configurable tachometer for 4, 6, or 8-cylinder engines;
- Translucent backlighting;
- Operating voltage: 12 Volts;
- Maximum float resistance: 1 K;
12-month warranty against manufacturing defects
