Cluster VW Golf MK1 / MK2

This high-performance automotive instrument is designed to provide a complete and customized experience for your vehicle. For detailed information on pricing and purchasing conditions, please contact us directly. Our team is ready to assist you with all the details you need.



Download the manual in PDF (Milhas)

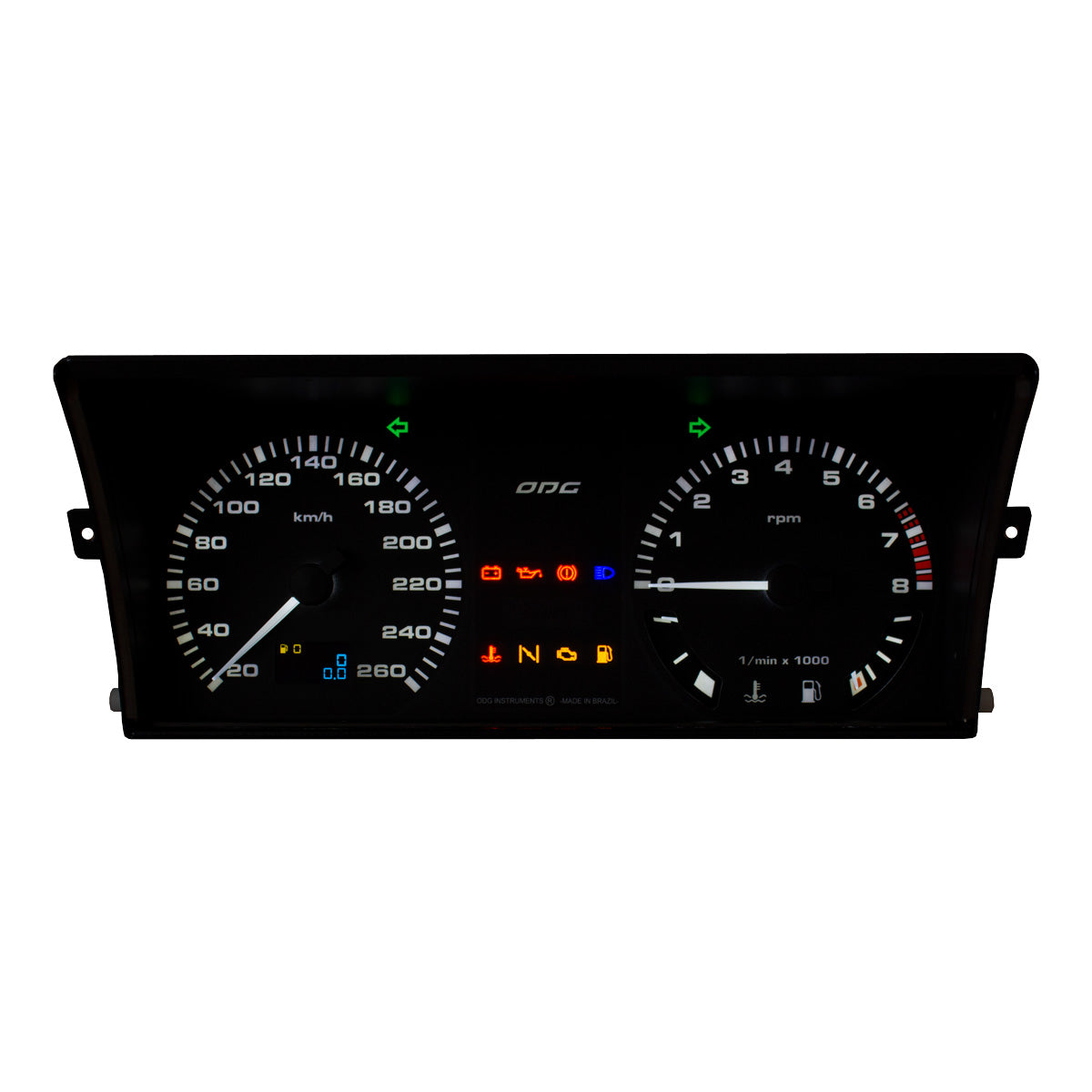

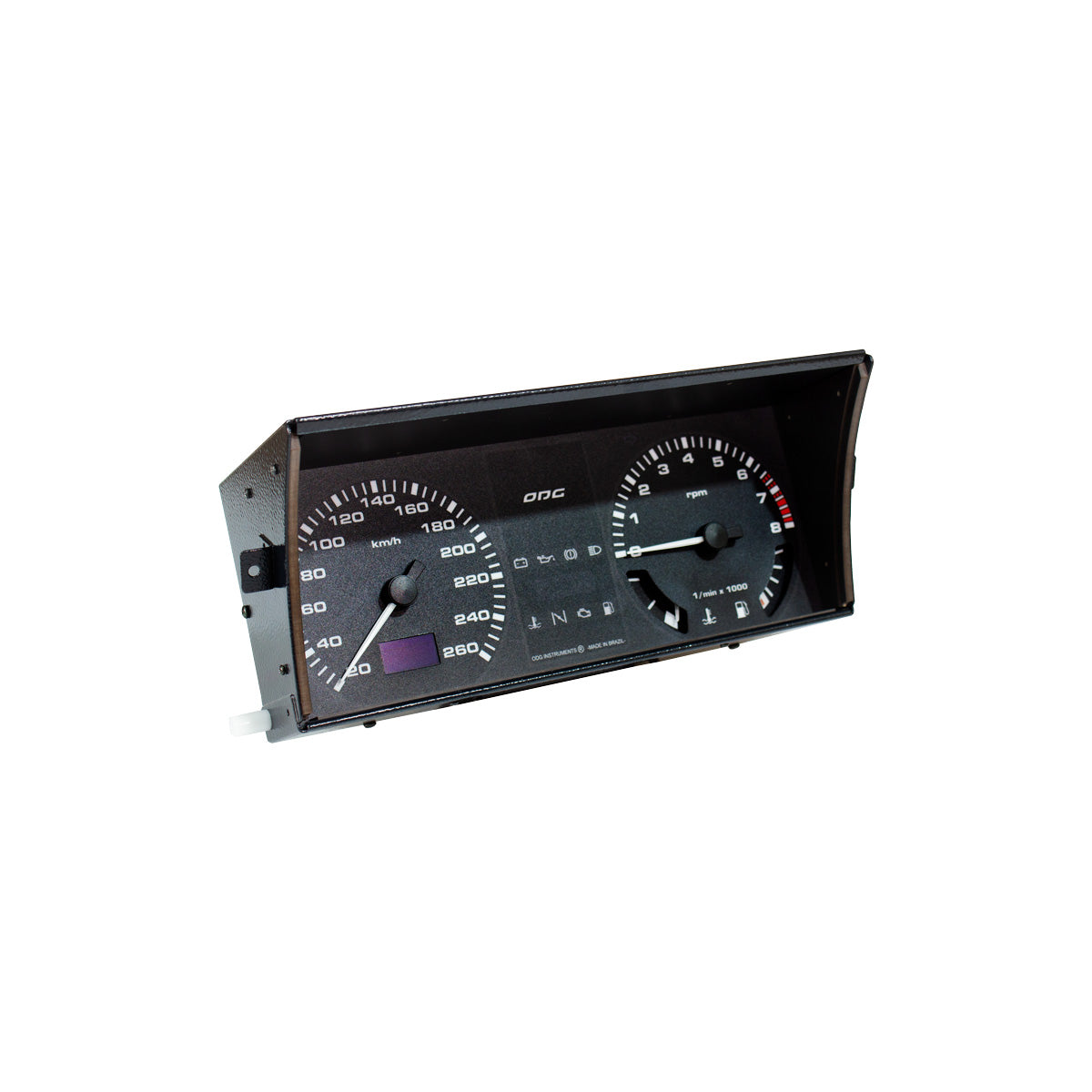

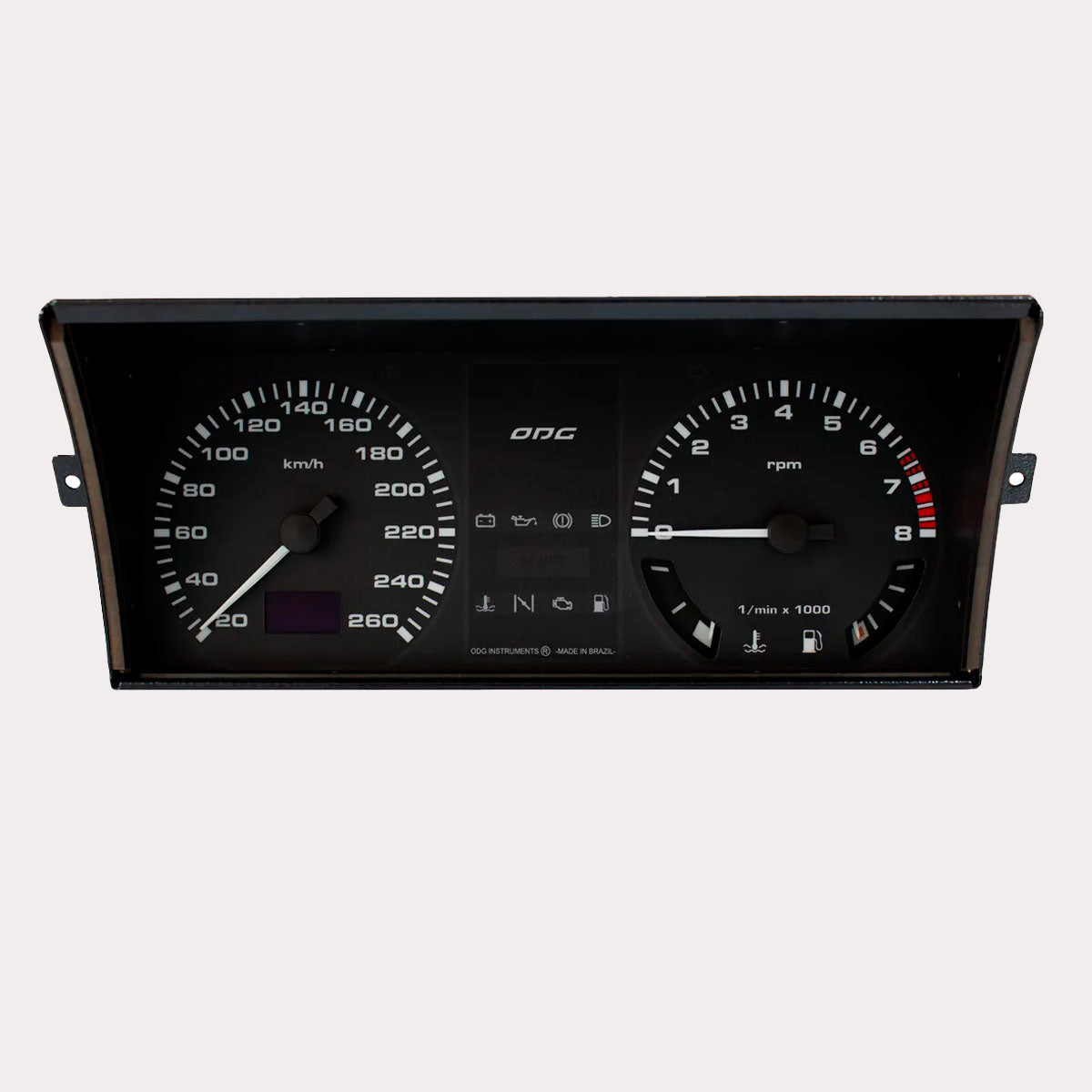

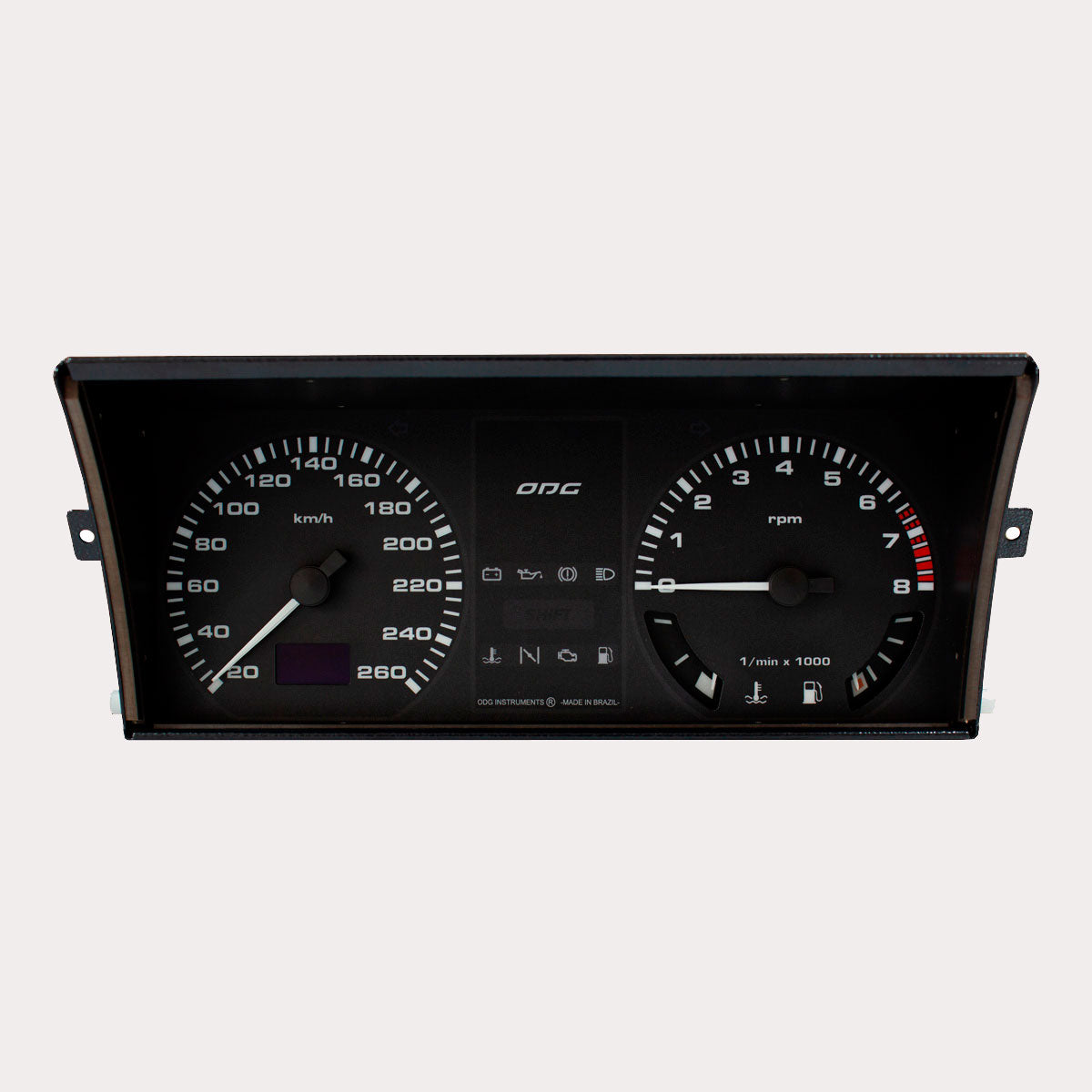

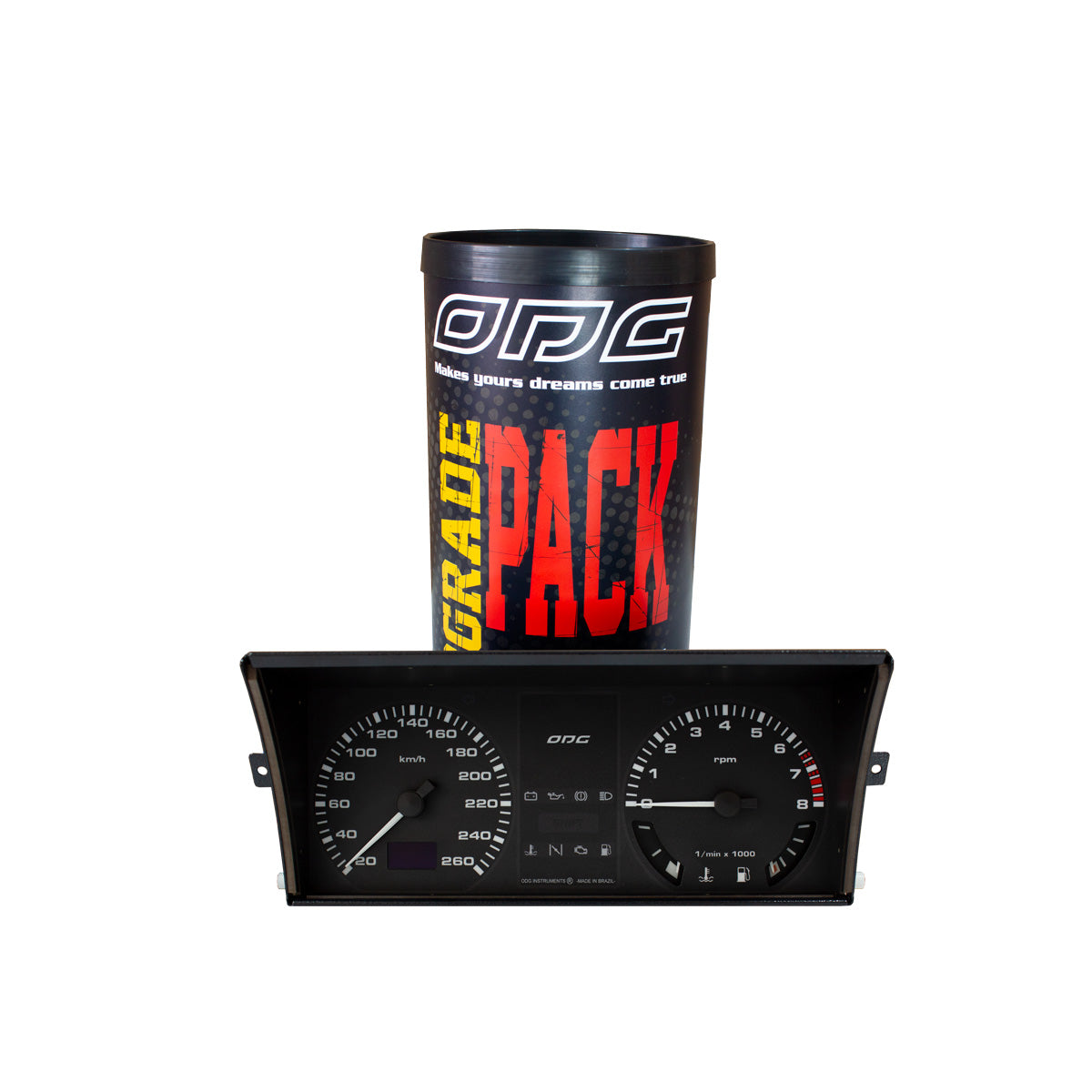

Model VW Golf MK1 / MK2: with white lettering, multicolor translucent lighting, and white illuminated pointer (8000 RPM and 260 km/h).

This instrument panel is designed to replace the original panel of VOLKSWAGEN vehicles: GOL, PARATI, SAVEIRO, and VOYAGE manufactured between 1988 and 1994.

Its system is entirely digital, allowing the speedometer, tachometer, and fuel level indicator to be configured for precise operation in the vehicle.

The speedometer can be configured for any gear ratio and tire outer diameter. It is compatible with HALL-type speed sensors and can also use inductive sensors, requiring the use of the Inductive Sensor Conditioner CSI-1, code ODG 147.0.0.0.0.

The tachometer works with 3, 4, 5, or 6-cylinder engines and also includes an integrated Shift Light alert.

The fuel level indicator is pre-configured for the original float; however, if the reading is incorrect, you can use the custom float feature to configure it with the installed float and tank combination.

The pointers are driven by stepper motors, which offer high precision and long lifespan. These motors reset every time the ignition is turned on and off, allowing the panel to completely shut off its power (battery) after turning off the ignition switch. The main advantage of this feature is to prevent vehicle battery drainage and allow the use of the panel in competition/collector vehicles equipped with a master switch.

The settings are saved in the panel’s memory and are not lost when the power is turned off, meaning the panel can remain unpowered for an indefinite period while retaining its settings.

The brightness intensity can be adjusted via the keypad, featuring a DIMMER function.

FEATURES:

• Fully electronic with microcontroller management
• Movement via stepper motors

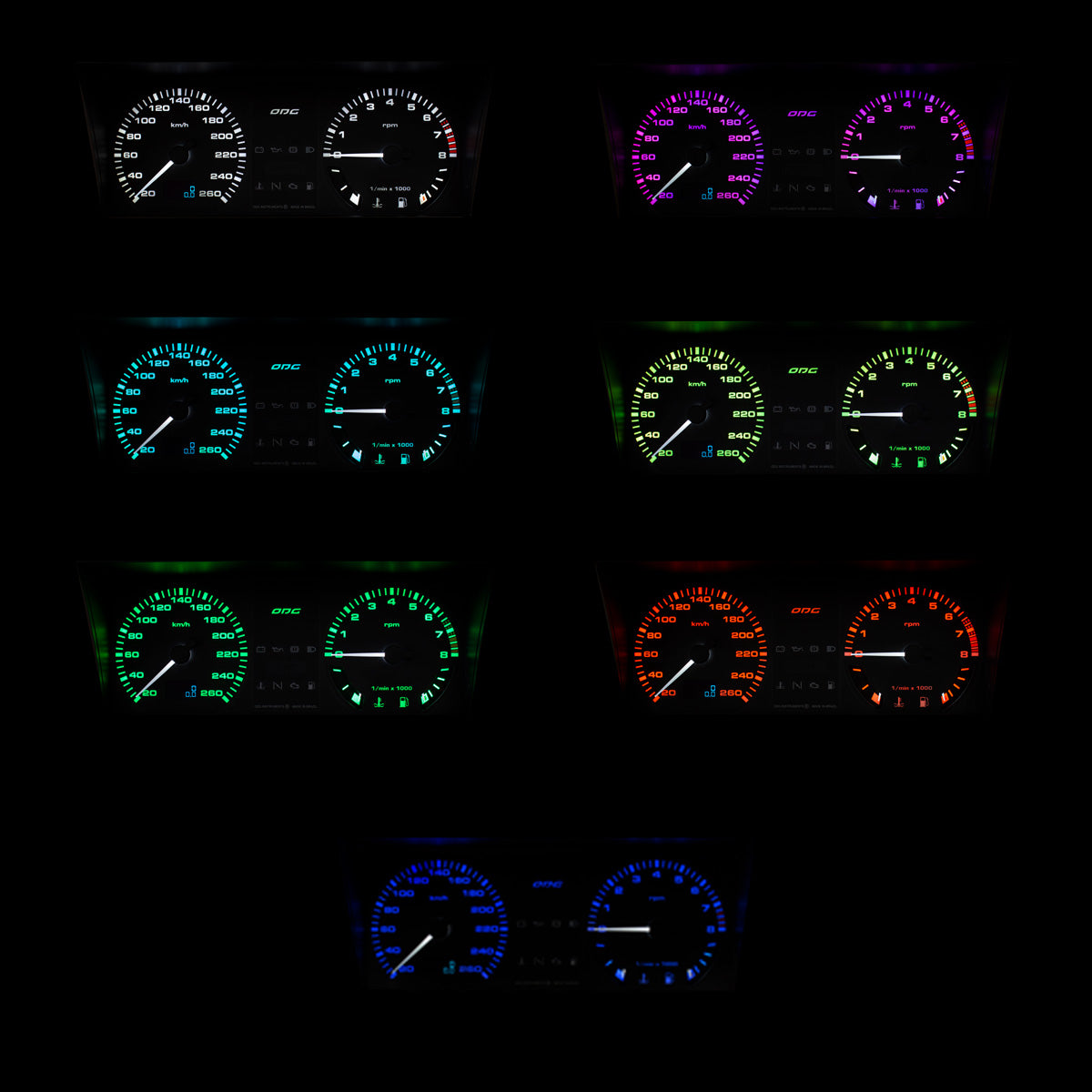

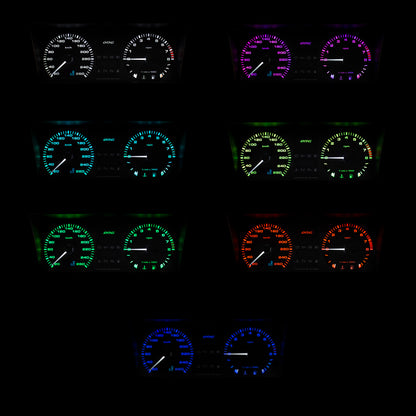

• Translucent lighting with 7 color options and brightness adjustment (dimmer)
• Configurable speedometer for any gear ratio and tire outer diameter
• Total, trip, and fuel reserve odometers* displayed on a high-contrast OLED screen
• Configurable tachometer for 3, 4, 5, or 6-cylinder engines
• Integrated Shift Light alert
• Engine temperature indicator with programmable alert light
• Fully configurable fuel level indicator
• Fuel level indicator configurable for use with original float (standard) or custom float
• Warning lights with LED indicators for original functions**

• The reserve odometer displays the distance traveled after reaching the fuel reserve. It activates when the tank is below 1/8 and deactivates automatically when above 3/16 of the tank.

12-month warranty against manufacturing defects.
